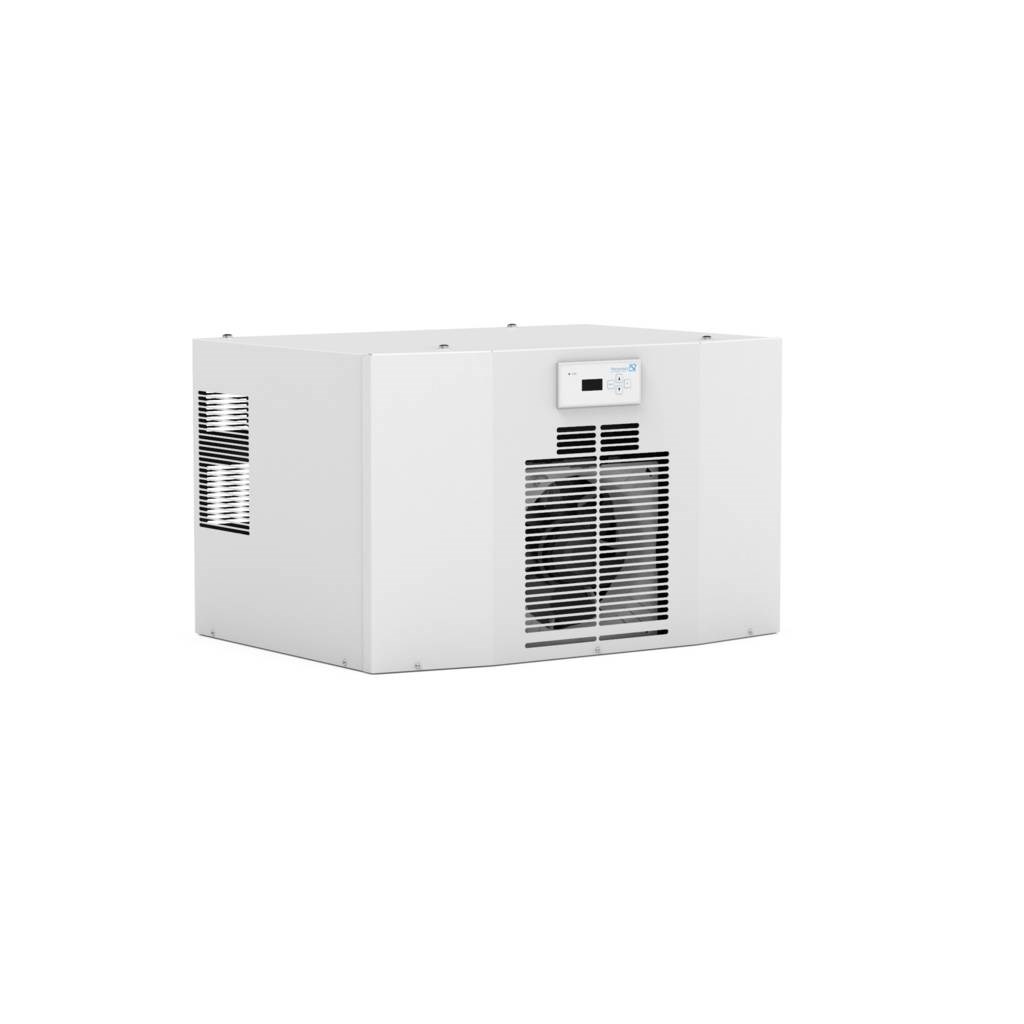

PFANNENBERG COOLING UNIT 400V 3kW RAL7035 IP54 DTT 6601

Product Code: 13256632055

  • Cooling capacity of 3000 W
  • IP54 protection rating
  • Top mounting type
  • Operates at 400/460 VAC
  • Noise level under 62 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTT

Electrical

Power Consumption
1700/2100W
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
400/460V
Cooling Capacity
3000/3200 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, electrostatically powder-coated cover
Mounting
DTT – Roof Mounting
Unimpeded Airflow-Internal
1420–1530 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
575mm
Height
485mm (roof-mounted DTT series width/height layout per datasheet)
Weight
in supplied datasheet extract
Width
795mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
< 62 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
