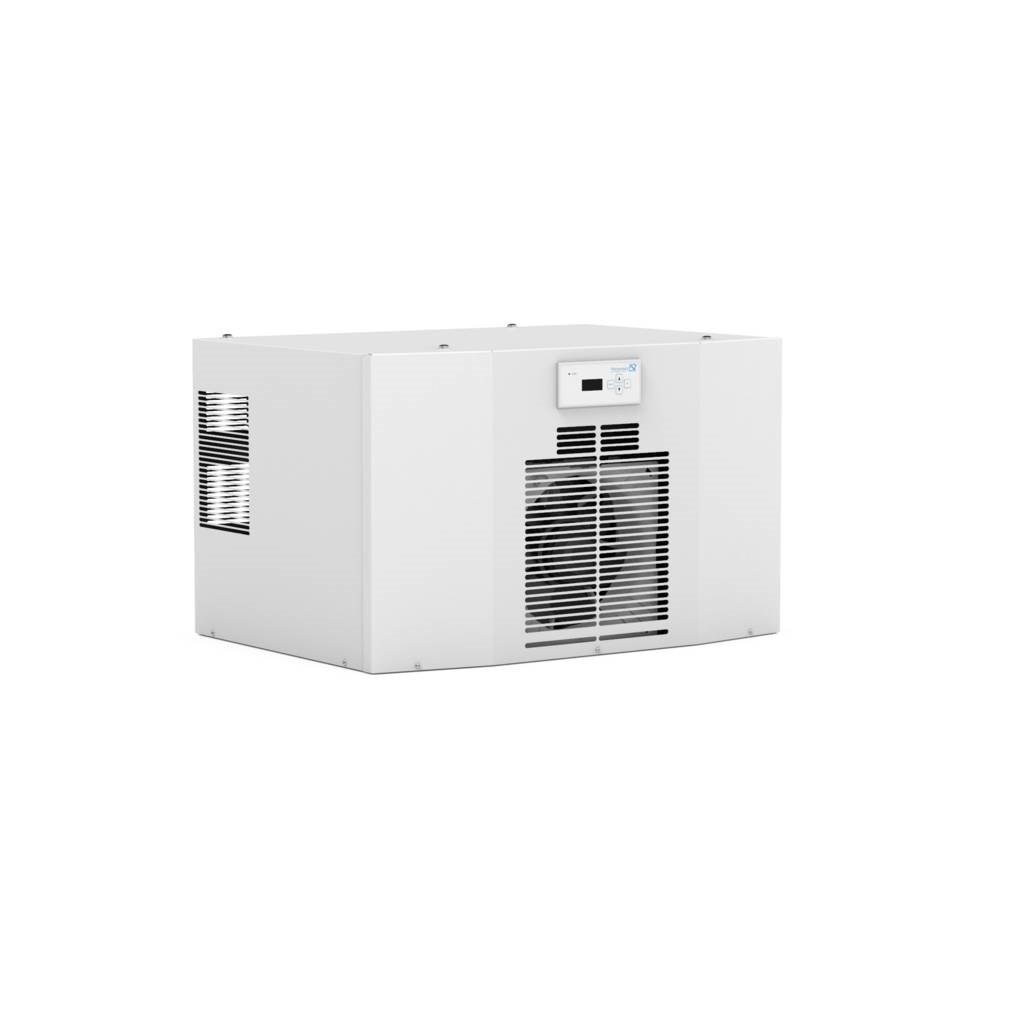

PFANNENBERG COOLING UNIT 230V 2kW RAL7035 IP54 DTT 6401

Product Code: 13256441055

  • Cooling capacity of 2000 W
  • IP54 protection rating
  • Top mounting design
  • Operates at 230 VAC, 50/60 Hz
  • Noise level below 62 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTT

Electrical

Power Consumption
753/1047W
Rated Current (In)
1.82A (400/460V) / 5.02A (230V)
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
2000 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTT – Roof Mounting
Unimpeded Airflow-Internal
935 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
495mm
Height
435mm
Weight
Not available in supplied datasheet extract
Width
595mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
< 65 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)
