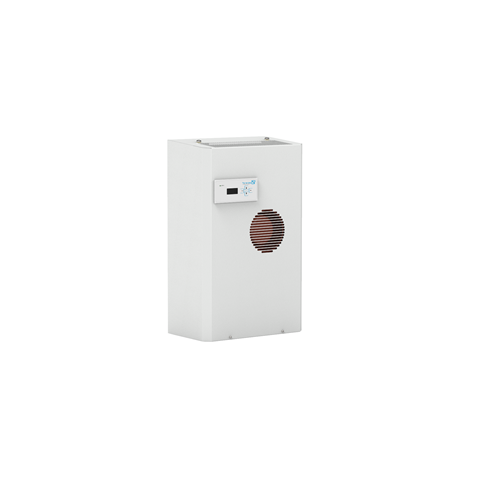

PFANNENBERG COOLING UNIT 230V 870W MC RAL7035 IP54 DTS 9041

Product Code: 13249071055

  • Cooling capacity of 870 W for efficient performance
  • IP54 protection rating ensures durability
  • Operates at 230 VAC with 50/60 Hz frequency
  • Compact design: 380mm W x 604mm H x 231mm D
  • Low noise level under 63 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
524/634W
Rated Current (In)
3.06 / 3.34A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
870 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTS – External Door/Side Mounting
Unimpeded Airflow-Internal
300 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
231mm
Height
604mm
Weight
29.5kg
Width
380mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
< 63 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)
