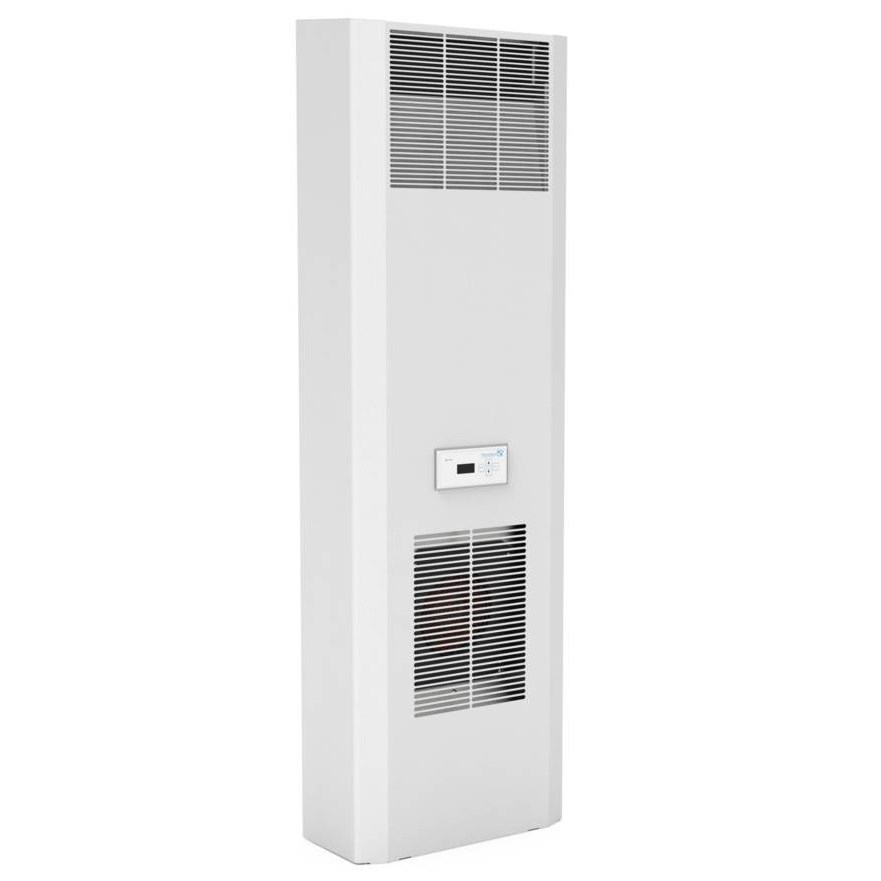

PFANNENBERG COOLING UNIT 230V 870W SC RAL7035 IP54 DTS 9041

Product Code: 13249041055

  • Cooling capacity of 870 W
  • IP54 protection rating
  • Operates at 230 VAC, 50/60 Hz
  • Noise level under 63 dBA
  • Light grey RAL 7035 finish
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTS

Electrical

Power Consumption
524/634 W
Rated Current
3.06 / 3.34 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
230 V
Cooling Capacity
870 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTS – External Door/Side Mounting
Unimpeded Airflow-Internal
300 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
231 mm
Height
604 mm
Weight
29.5 kg
Width
380 mm

Environmental

Noise (dB)
< 63 dB(A)
Operating Temperature
+15 to +55 °C
IP Rating
IP54 / IP34
Ambient Temperature
+15 to +55 °C

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)
