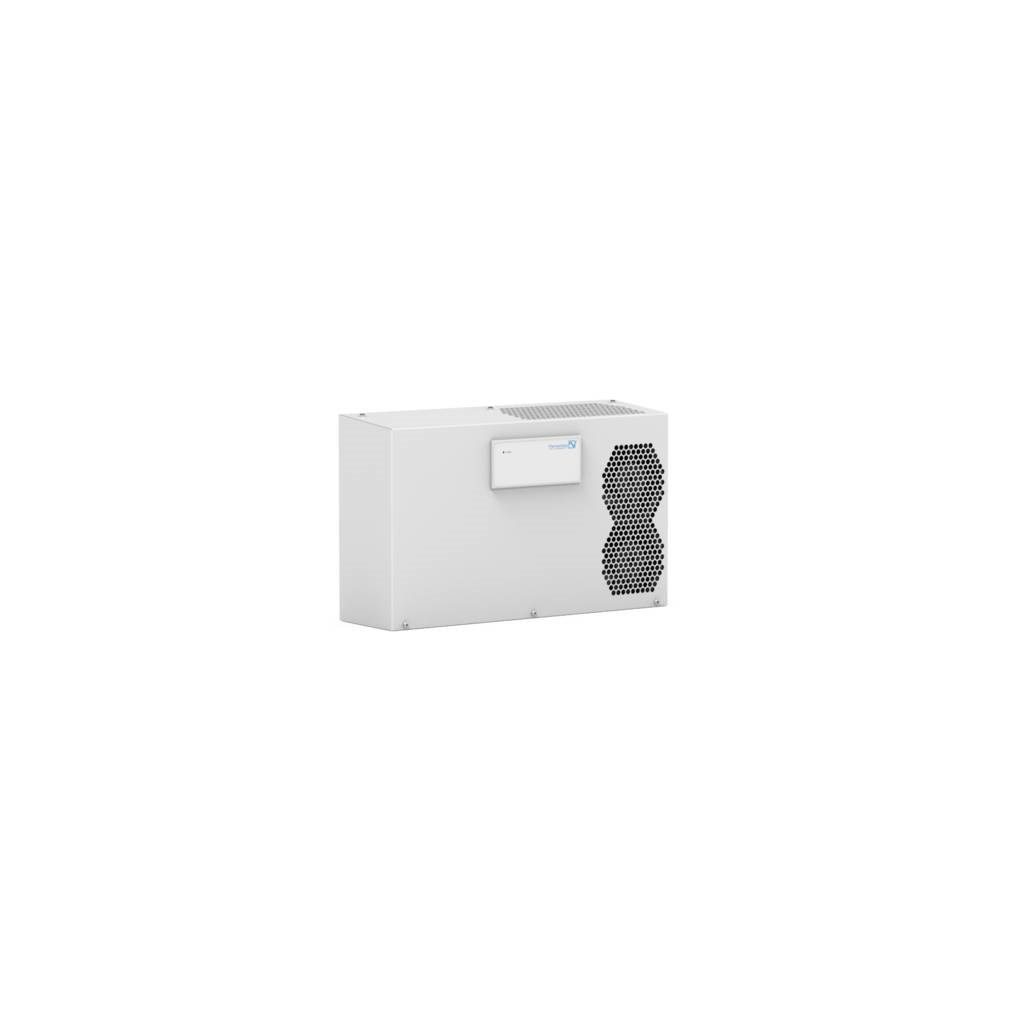

PFANNENBERG COOLING UNIT 230V 300W RAL7035 IP54 DTS 9011H

Product Code: 13242541055

  • Efficient 300 W cooling capacity
  • Operates at 230 VAC, 50/60 Hz
  • Compact design: 495x300x140 mm
  • Quiet operation with <65 dBA noise level
  • Durable galvanized sheet steel construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
275/290W
Rated Current (In)
1.52 / 1.56A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
300 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
Door/Side Mounting
Unimpeded Airflow-Internal
160 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
140mm
Height
300mm
Weight
15kg
Width
495mm

Environmental

Operating Temperature
15°C to 45°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 45°C
Noise Level
< 65 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)
