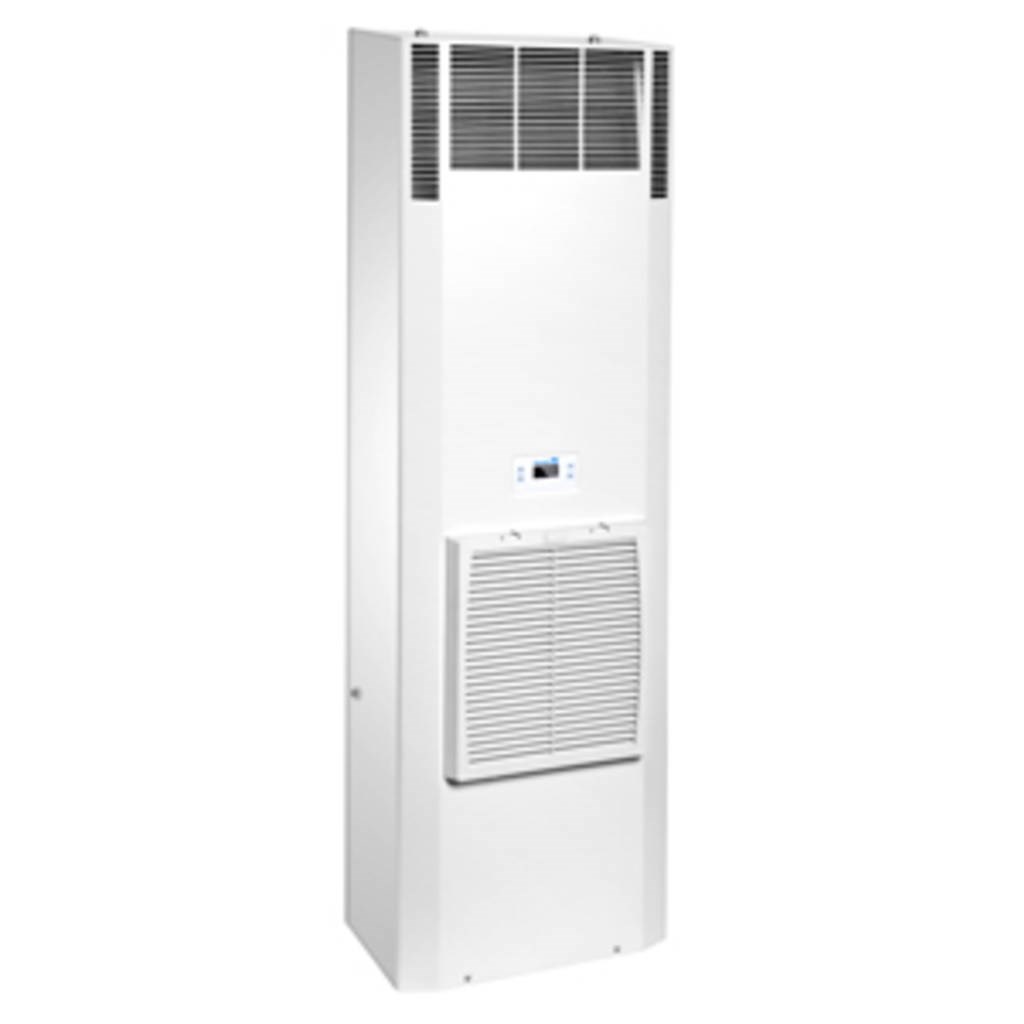

PFANNENBERG COOLING UNIT 400V 2~ 2.5kW RAL7035 IP54 DTS 8541E

Product Code: 13088591055

  • Cooling capacity of 2500 W
  • Rated voltage: 400 VAC
  • IP54 protection rating
  • Door/side mounting type
  • Operates at 15 to 55°C ambient temp
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
1089W
Rated Current (In)
2.95A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230 / 400v 2~ V
Cooling Capacity
2500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
External Side/Wall Mounting
Unimpeded Airflow-Internal
1520 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
230mm
Height
1350mm
Weight
49.3kg
Width
400mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
15°C to 55°C
Noise Level
≤ 67 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54
