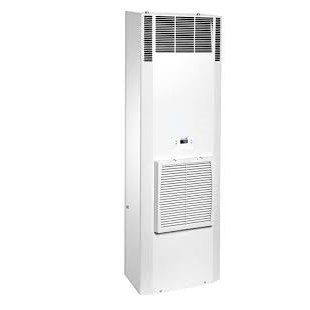

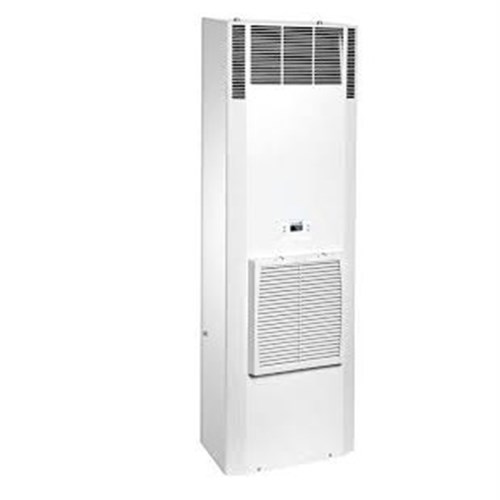

PFANNENBERG COOLING UNIT 400V 2~CM 2kW RAL7035 IP54 DTS 8441E

Product Code: 13088491066

  • Cooling capacity of 2000 W
  • IP54 protection rating
  • Door/side mounting flexibility
  • Operates at 50/60 Hz frequency
  • Quiet operation at <=66 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTS

Electrical

Power Consumption
784 W
Rated Current
2.46 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
230 / 400v 2~ V
Cooling Capacity
2000 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
External Side/Wall Mounting
Unimpeded Airflow-Internal
1000 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
230 mm
Height
1350 mm
Weight
50.7 kg
Width
400 mm

Environmental

Noise (dB)
≤ 66 dB(A)
Operating Temperature
+15 to +55 °C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
+15 to +55 °C

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54
