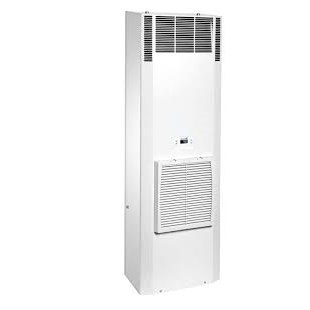

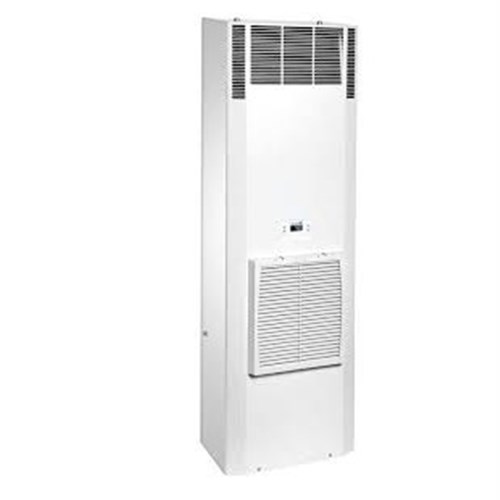

PFANNENBERG COOLING UNIT 230V 2kW RAL7035 IP54 DTS 8441E

Product Code: 13088490055

  • Efficient cooling with 2000 W capacity
  • Operates on 230 VAC, 50/60 Hz
  • Side mounting for easy installation
  • IP54 protection against dust and water
  • Durable galvanized sheet steel construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
734W
Rated Current (In)
3.4A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230 / 400v 2~ V
Cooling Capacity
2000 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
External Side/Wall Mounting
Unimpeded Airflow-Internal
1000 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
230mm
Height
1350mm
Weight
43kg
Width
400mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
15°C to 55°C
Noise Level
≤ 66 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54
