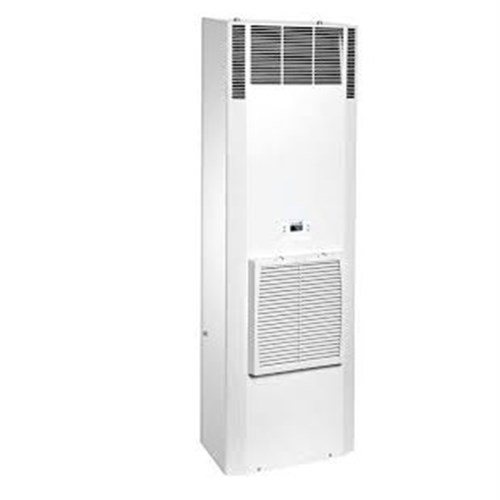

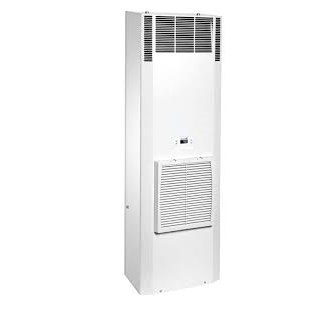

PFANNENBERG COOLING UNIT 230V 1.5kW RAL7035 IP54 DTS 8341E

Product Code: 13088390055

  • Efficient cooling with 1500 W capacity
  • Operates at 230 VAC, 50/60 Hz
  • Robust IP54 protection rating
  • Compact design: 400x1350x200 mm
  • Quiet operation at <=65 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
596W
Rated Current (In)
2.75A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230 / 400v 2~ V
Cooling Capacity
1500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
External Side/Wall Mounting
Unimpeded Airflow-Internal
1000 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
200mm
Height
1350mm
Weight
34.1kg
Width
400mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
15°C to 55°C
Noise Level
≤ 65 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54

Documents

IPD Product Catalogue V17
