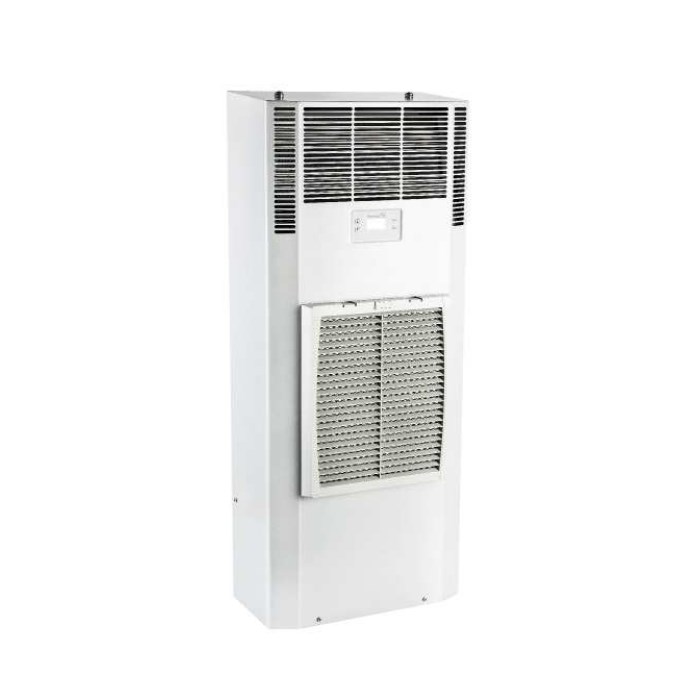

PFANNENBERG COOLING UNIT 400V 2~ CM 500W RAL7035 IP54 DTS 8031E

Product Code: 13048091336

  • Cooling capacity of 500 W
  • IP54 protection for reliable operation
  • Door/side mounting flexibility
  • Galvanized sheet steel construction
  • Operates in 15 to 55°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTS

Electrical

Power Consumption
358 W
Rated Current
1.46 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
230 / 400v 2~ V
Cooling Capacity
500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
Side Mounting
Unimpeded Airflow-Internal
275 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
200 mm
Height
670 mm
Weight
25.3 kg
Width
325 mm

Environmental

Noise (dB)
≤ 63 dB(A)
Operating Temperature
+15 to +55 °C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
+15 to +55 °C

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54
