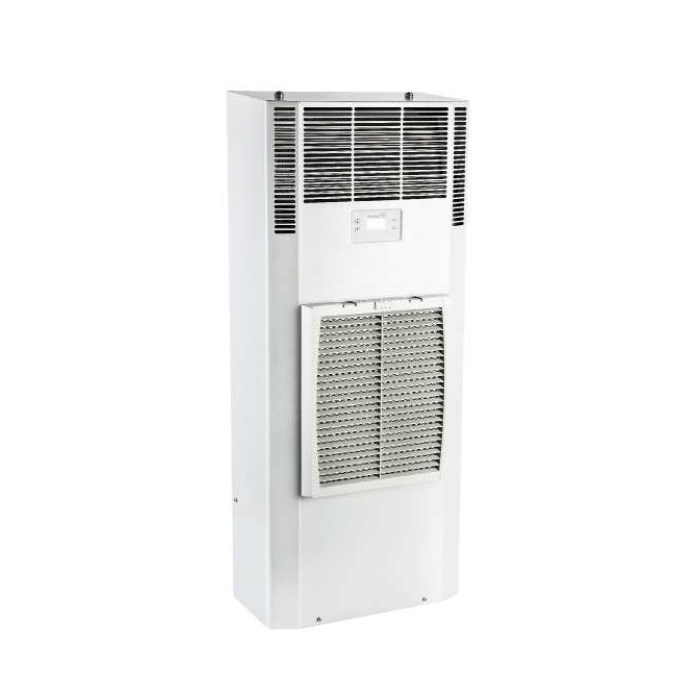

PFANNENBERG COOLING UNIT 400V 2~ 500W RAL7035 DTS 8031E

Product Code: 13048091335

  • Cooling capacity of 500W for efficient performance
  • Operates at a voltage range of 360-440 VAC
  • IP54 protection ensures durability in harsh conditions
  • Compact design with dimensions: 325x675x200 mm
  • Noise level maintained at <=63 dBA for quiet operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTS

Electrical

Power Consumption
358 W
Rated Current
1.46 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
230 / 400v 2~ V
Cooling Capacity
500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
Side Mounting
Unimpeded Airflow-Internal
275 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
200 mm
Height
670 mm
Weight
17.3 kg
Width
325 mm

Environmental

Noise (dB)
≤ 63 dB(A)
Operating Temperature
+15 to +55 °C
IP Rating
IP54 (electrical enclosure)
Ambient Temperature
+15 to +55 °C

Safety, Standards & Compliance

Standards and Approvals
EN 60529 IP54
