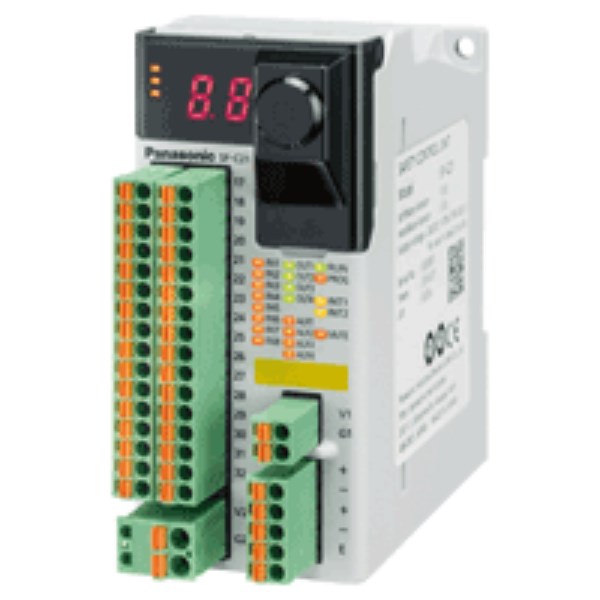

Panasonic SF-C21 Safety Control Unit

Product Code: SF-C21

  • Control unit with IP20 protection
  • Operates up to 55°C
  • Complies with EN 55011 standard
  • Meets IEC 61000-6-2 standards
  • Follows IEC 61326-3-1 regulation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Control Unit
Brand
Panasonic
Series
SF-C21

Electrical

Supply Current
200mA or less (internal); 100mA or less (external)
Switching Current
300mA per control output
Switching Voltage
Same as external power supply: 24V DC +10/-15%
Supply Voltage
24V DC

Mechanical

Housing Material
Main unit enclosure: Polycarbonate / ABS polymer alloy; enclosure: Polycarbonate

Dimensions & Physical Data

Height
97mm
Weight
190g approx.
Width
45mm

Environmental

Operating Temperature
-10°C to 55°C
IP Rating
IP20 (install in IP54 or higher control panel)

Safety, Standards & Compliance

Auxiliary Semiconductor Outputs
4
Safe Semiconductor Outputs, Stop 0
4
Safety Category
Category 4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e

Documents

IPD Product Catalogue V17
