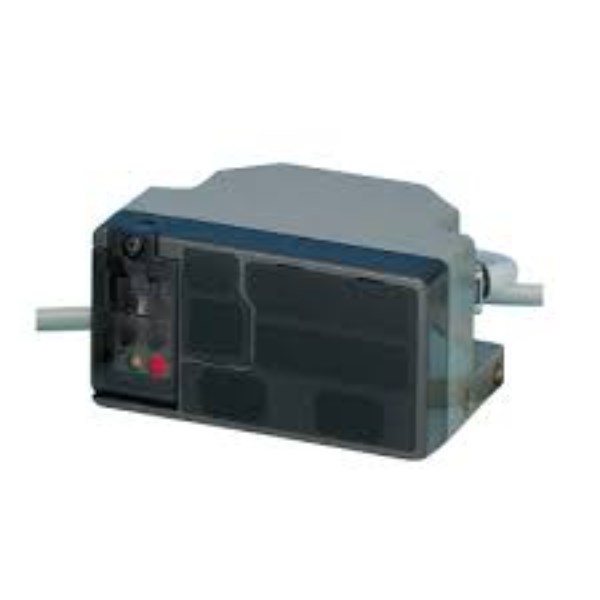

Panasonic PX-22 Long Range and Wide Area Photoelectric Sensor 10-31VDC 300mm Sensing 0.5m L Cable NPN-Output

Product Code: PX-22

  • Compact safety sensor with 300 mm range
  • Operates on 10-31 VDC, NPN output type
  • Durable PBT body, acrylic lens, polycarbonate cover
  • IP65 protection for harsh environments
  • RoHS compliant for eco-friendly use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
PX

Electrical

Max. Switching Distance
300mm
Sensing Type
Photoelectric
Type of Switching Output
NPN-Output
Electrical Connection
Cable
Light Source
Infrared LED (Peak emission wavelength: 950 nm 0.037 mil, modulated)
Rated Voltage (Ur)
10V to 31V DC

Mechanical

Material
Enclosure: ABS, Lens: Acrylic, Cover: Polycarbonate

Dimensions & Physical Data

Cable Length
0.5m

Environmental

Operating Temperature
-10°C to 55°C
IP Rating
IP65 (IEC)

Documents

IPD Product Catalogue V17
