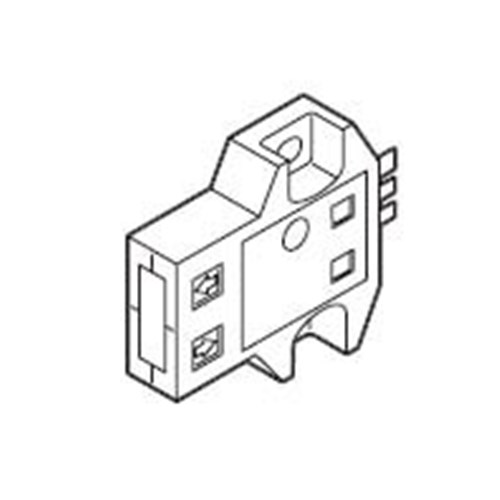

Panasonic PM2-LH10B Convergent Reflective Micro Photoelectric Sensor 5-24VDC 2.5-8mm Sensing 2m L Cable NPN-Output

Product Code: PM2-LH10B

  • Compact optical sensor with 2.5-8 mm range
  • Operates on 5-24 VDC, NPN output type
  • Durable polycarbonate enclosure
  • Fast response time of <0.8 ms
  • CE, RoHS, UL/cUL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
PM2

Electrical

Max. Switching Distance
2.5mm to 8mm
Sensing Type
Photoelectric
Type of Switching Output
NPN-Output
Electrical Connection
Cable
Light Source
Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Rated Voltage (Ur)
5 to 24 V DC plus or minus 10 % Ripple P-P 5 % or less

Mechanical

Material
Enclosure: Polycarbonate, Terminal part: HSM (Ag plated)

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature
-10°C to 55°C

Documents

IPD Product Catalogue V17
