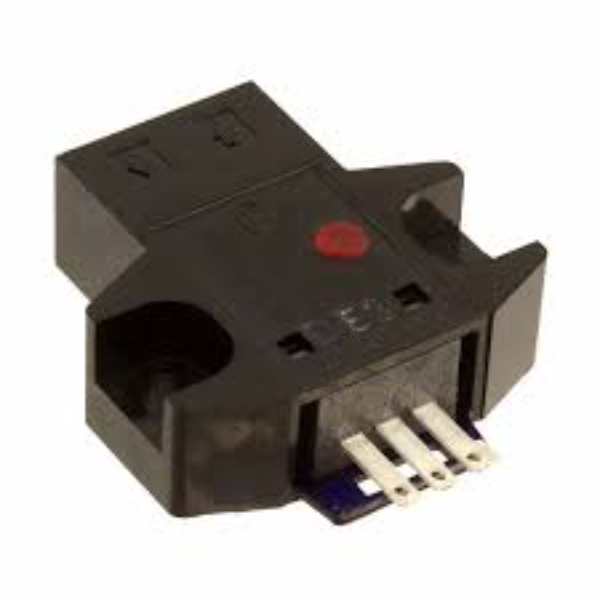

Panasonic PM2-LH10 Convergent Reflective Micro Photoelectric Sensor 5-24VDC 0.05mm Copper Wire Sensing 2m L Cable

Product Code: PM2-LH10

  • Detects 0.05 mm copper wire
  • Operates at 5-24 VDC, NPN output
  • Durable polycarbonate body
  • Fast response time <0.8 ms
  • CE, RoHS, UL/cUL certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
PM2

Electrical

Sensing Type
Photoelectric
Type of Switching Output
NPN open-collector transistor Maximum sink current: 100 mA Applied voltage: 30 V DC or less (between output and 0 V) Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)
Electrical Connection
Cable
Light Source
Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Rated Voltage (Ur)
5 to 24 V DC plus or minus 10 % Ripple P-P 5 % or less

Mechanical

Material
Enclosure: Polycarbonate, Terminal part: HSM (Ag plated)

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature
-10°C to 55°C
