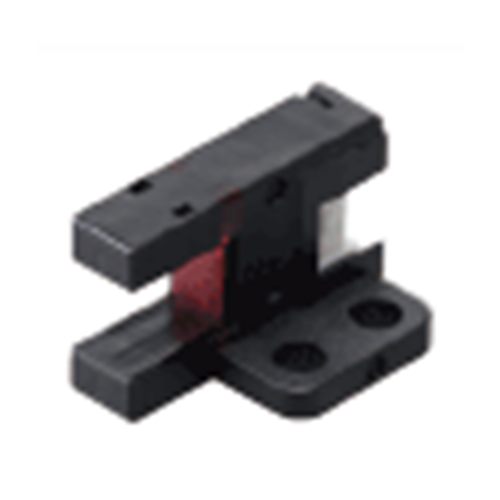

Panasonic PM-F65W Amplifier Built-In/U-Shaped Micro Photoelectric Sensor 5-24VDC 6mm Sensing 100m L Cable NPN-Output

Product Code: PM-F65W

  • Compact optical sensor with 6 mm range
  • Versatile voltage: 5-24 VDC
  • Durable PBT and polycarbonate housing
  • Light/Dark operation indicator
  • CE, RoHS, UL/cUL approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fiber Sensor
Brand
Panasonic
Series
PM

Electrical

Max. Switching Distance
6mm
Sensing Type
Photoelectric
Type of Switching Output
NPN-Output
Electrical Connection
Cable
Light Source
Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Rated Voltage (Ur)
5V to 24V DC

Mechanical

Material
Enclosure: PBT Display section: Polycarbonate

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40 (IEC)

Documents

IPD Product Catalogue V17
