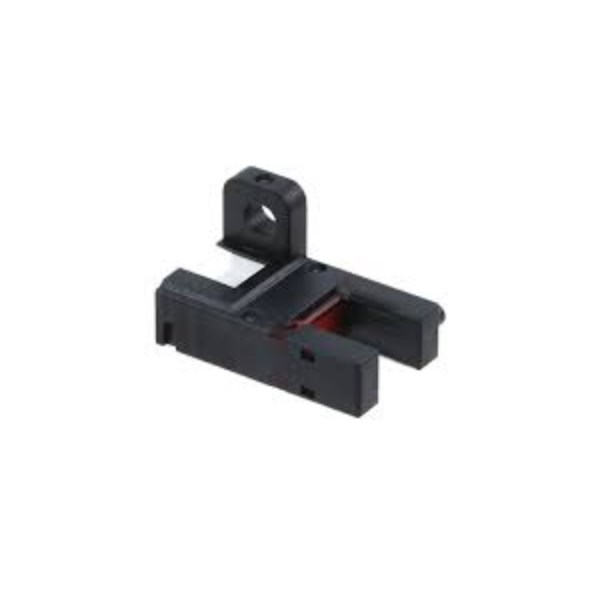

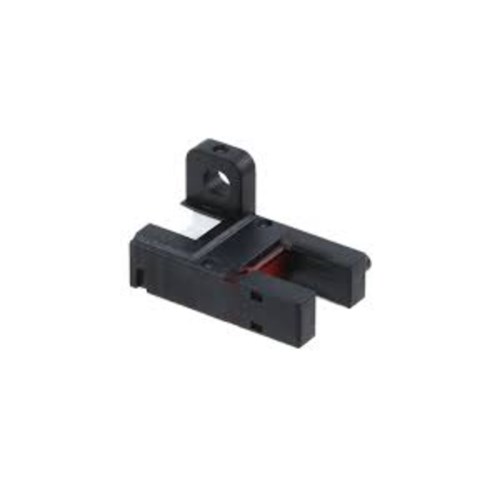

Panasonic PM-F65 Amplifier Built-In/U-Shaped Micro Photoelectric Sensor 5-24VDC 6mm Sensing 100m L Cable NPN-Output

Product Code: PM-F65

  • Compact safety sensor with 6mm sensing range
  • Operates on 5-24 VDC, 15 mA current
  • Durable PBT and polycarbonate housing
  • IP40 protection and shock resistance of 15000 m/s²
  • Light/Dark operation indicator for flexibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
PM

Electrical

Max. Switching Distance
6mm
Sensing Type
Photoelectric
Type of Switching Output
NPN-Output
Electrical Connection
Cable
Light Source
Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Rated Voltage (Ur)
5V to 24V DC

Mechanical

Material
Enclosure: PBT Display section: Polycarbonate

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP40 (IEC)

Documents

IPD Product Catalogue V17
