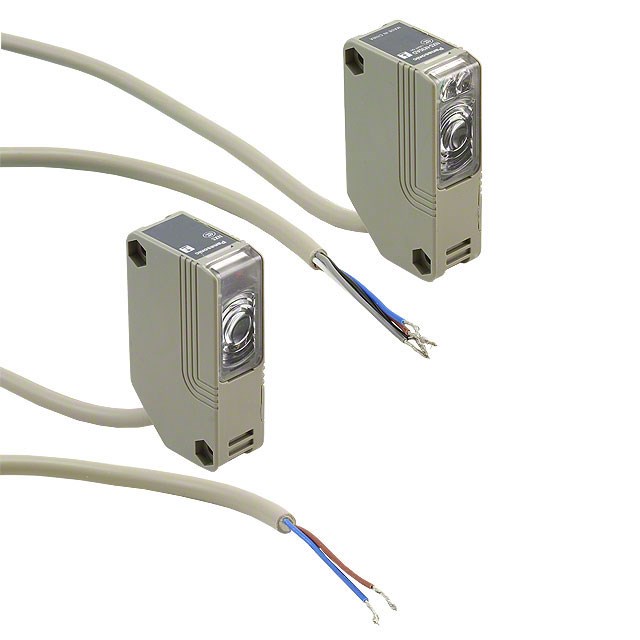

Panasonic NX5-M10RB-C5 Compact Multi-voltage Photoelectric Sensor 24-240VAC 10m Sensing

Product Code: NX5-M10RB-C5

  • Optical sensor with 10m sensing range
  • Wide voltage range: 24-240 VAC
  • Durable polycarbonate housing and lens
  • IP66 protection for harsh environments
  • Fast response time of 10 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
NX5

Electrical

Max. Switching Distance
10000mm
Sensing Type
Photoelectric
Type of Switching Output
Relay-Output
Electrical Connection
Cable
Rated Voltage (Ur)
24 to 240 V AC +10-15 % or 12 to 240 V DC +10-15 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polycarbonate Lens: Polycarbonate Cover: Polycarbonate

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature
-20°C to 55°C
IP Rating
IP66 (IEC)

Documents

IPD Product Catalogue V17
