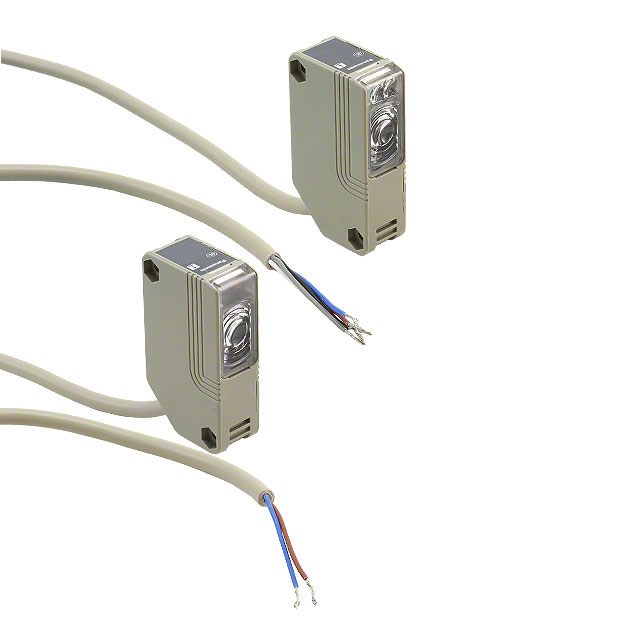

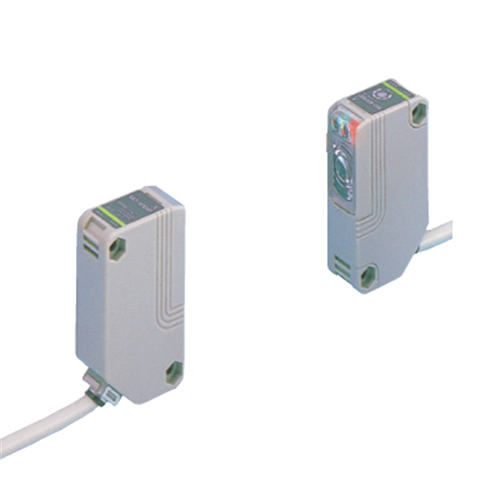

Panasonic NX5-M10RA Compact Multi-voltage Photoelectric Sensor 12-240VDC 10m Sensing 1CO Relay-Output

Product Code: NX5-M10RA

  • 10 m sensing range for versatile applications
  • Wide voltage range: 12-240 VDC
  • Durable polycarbonate body, IP66 rated
  • Operates in -30 to 70°C environments
  • Red LED with Light-ON indication
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
NX5

Electrical

Max. Switching Distance
10000mm
Sensing Type
Photoelectric
Type of Switching Output
Relay-Output
Electrical Connection
Cable
Rated Voltage (Ur)
24 to 240 V AC +10-15 % or 12 to 240 V DC +10-15 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polycarbonate Lens: Polycarbonate Cover: Polycarbonate

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature
-20°C to 55°C
IP Rating
IP66 (IEC)

Documents

IPD Product Catalogue V17
