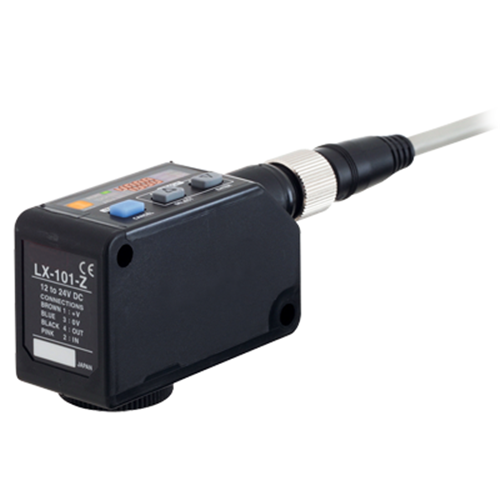

Panasonic LX-101-Z Digital Mark Sensor 12-24VDC 10mm Sensing

Product Code: LX-101-Z

  • Compact optical sensor with 10mm range
  • Operates on 12-24 VDC, NPN output
  • Durable IP67-rated PB enclosure
  • Functions in -10 to 55°C environments
  • Shock resistant up to 500 m/s²
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Mark Sensor
Brand
Panasonic
Series
LX - 100

Electrical

Max. Switching Distance
10mm
Sensing Type
Mark sensing
Type of Switching Output
NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 100 mA sink current)
Electrical Connection
plug-in connector
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
Enclosure: PBT Display cover: Polycarbonate Operation buttons: Silicone rubber Lens: Glass Lens holder: Aluminum

Environmental

Operating Temperature
-10°C to 55°C
IP Rating
IP67 (IEC)
