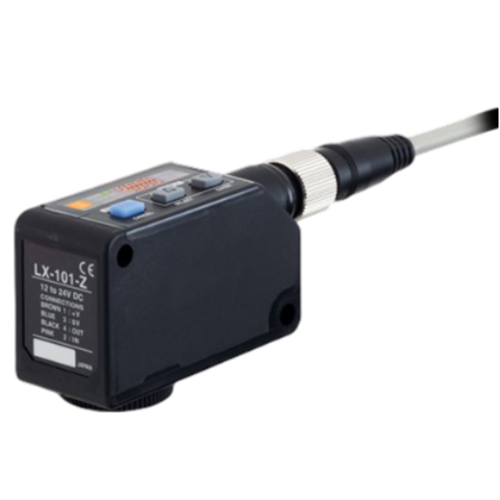

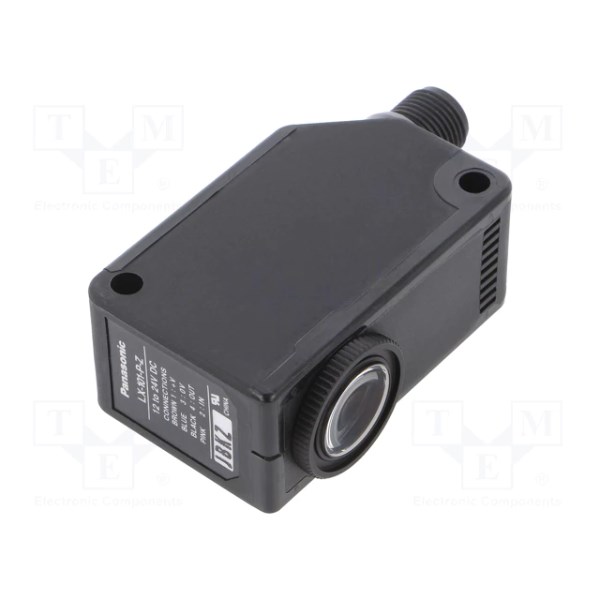

Panasonic LX-101-P-Z Digital Mark Sensor 12-24VDC 10mm Sensing NPN-Output

Product Code: LX-101-P-Z

  • Compact safety sensor with 10mm range
  • Operates on 12-24 VDC, 30 mA current
  • Robust PBT body with glass lens
  • IP67 protection for harsh environments
  • Light/Dark operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Accessory
Brand
Panasonic
Series
LX - 100

Electrical

Max. Switching Distance
10mm
Sensing Type
Mark sensing
Type of Switching Output
PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and +V) - Residual voltage: 1.5 V or less (at 100 mA source current)
Electrical Connection
plug-in connector
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
Enclosure: PBT Display cover: Polycarbonate Operation buttons: Silicone rubber Lens: Glass Lens holder: Aluminum

Environmental

Operating Temperature
-10°C to 55°C
IP Rating
IP67 (IEC)
