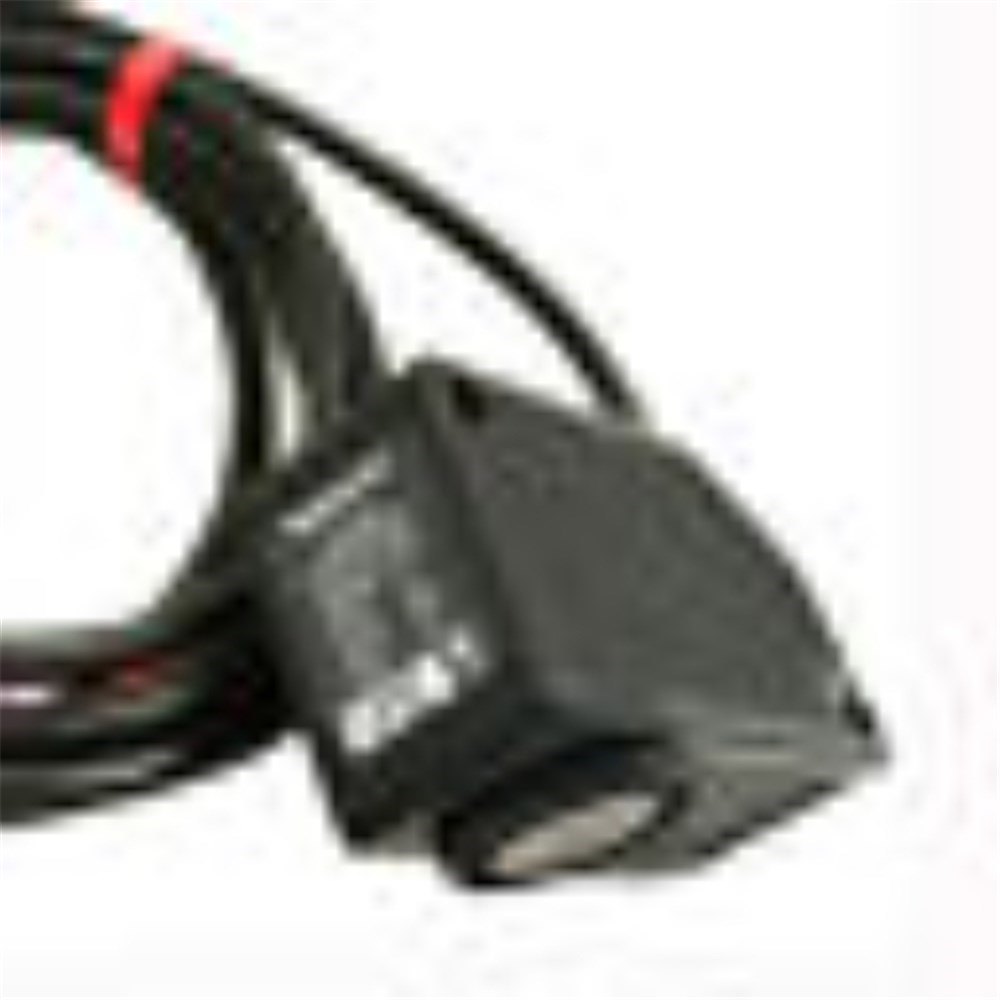

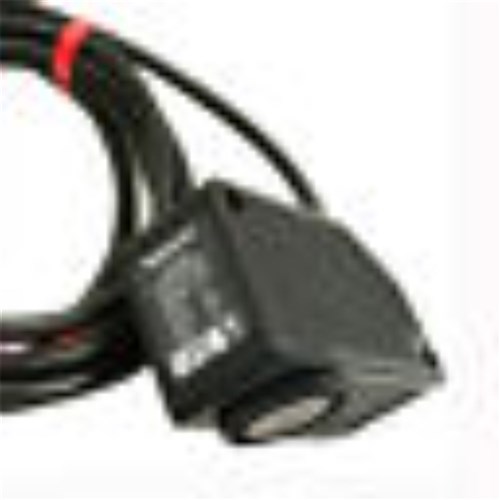

Panasonic LX-101 Digital Mark Sensor 12-24VDC 10mm Sensing 2m L Cable

Product Code: LX-101

  • Compact optical sensor with 10 mm range
  • Wide voltage range: 12-24 VDC
  • Durable IP67-rated enclosure
  • NPN transistor output type
  • Shock resistant up to 500 m/s²
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Mark Sensor
Brand
Panasonic
Series
LX - 100

Electrical

Max. Switching Distance
10mm
Sensing Type
Mark sensing
Type of Switching Output
NPN open-collector transistor - Maximum sink current: 50 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 50 mA sink current)
Electrical Connection
Cable
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
Enclosure: PBT Display cover: Polycarbonate Operation buttons: Silicone rubber Lens: Glass Lens holder: Aluminum

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature
-10°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
