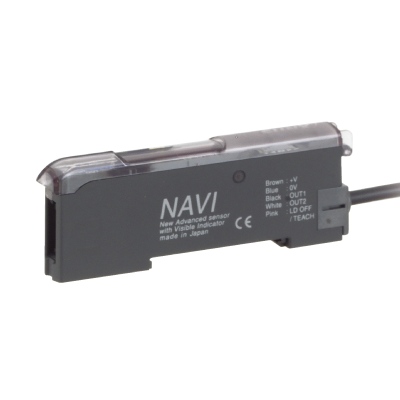

Panasonic LS-401-C2 Digital Laser Sensor 12-24VDC 2m L Cable

Product Code: LS-401-C2

  • Operates on 12-24 VDC
  • NPN Transistor output
  • ABS enclosure with polycarbonate cover
  • Light/Dark ON operation indicator
  • 2 m cable length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Laser Sensor
Brand
Panasonic
Series
LS - 400

Electrical

Sensing Type
Laser
Type of Switching Output
NPN open-collector transistor - Maximum sink current: 100 mA (Note) - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less [at 100 mA (Note) sink current] (Note) 50 mA if 5 to 8 connector type amplifiers are connected in cascade , and 25 mA if 9 to 16 connector type amplifiers are connected in cascade.
Electrical Connection
Cable
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
Enclosure: Heat-resistant ABS Transparent cover: Polycarbonate Push button switch: Acrylic Jog switch: ABS

Dimensions & Physical Data

Cable Length
2m

Environmental

Operating Temperature without Derating
-10°C to 55°C
Operating Temperature
-10°C to 55°C

Documents

IPD Product Catalogue V17
