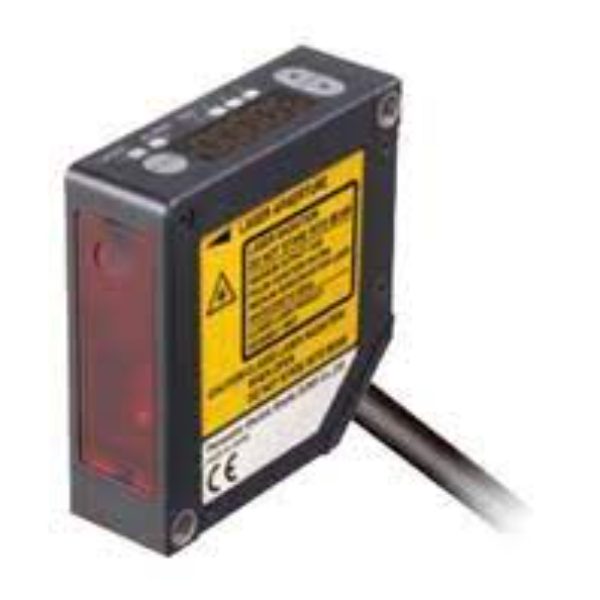

Panasonic HL-G112-A-C5 Compact Laser Displacement Sensor 12-24VDC 100mA +/-20mm Sensing

Product Code: HL-G112-A-C5

  • Sensing range of +/-20 mm
  • Operates on 12-24 VDC
  • NPN & PNP output types
  • Class 2 red laser source
  • IP67 durable protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Displacement Sensor
Brand
Panasonic
Series
HL - G

Electrical

Sensing Type
Diffuse reflection
Electrical Connection
Cable
Light Source
Red semiconductor laser, Class 2
Rated Voltage (Ur)
24V DC ±10 % including ripple 0.5V (P-P)

Mechanical

Material
Enclosure: PBT, Front cover: Acrylic, Cable: PVC

Dimensions & Physical Data

Depth
20.4mm
Height
60mm
Width
57mm
Cable Length
5m

Environmental

IP Rating
IP67 (IEC)
Ambient Temperature
-10°C to 45°C

Documents

IPD Product Catalogue V17
