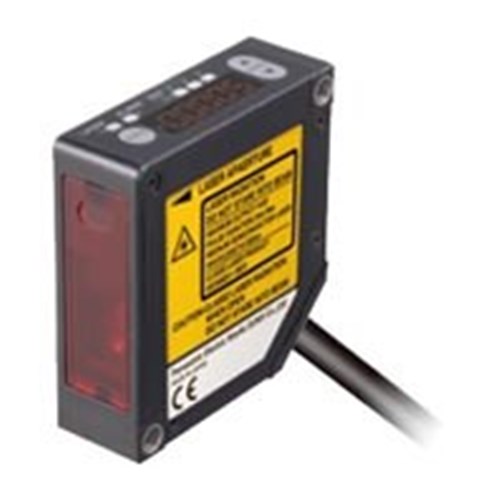

Panasonic HL-G103-A-C5 Standard Diffuse Reflection Sensor 24VDC <100mA 4mm Sensing

Product Code: HL-G103-A-C5

  • Compact design with 4 mm sensing range
  • Dual NPN/PNP open collector output
  • Operates on 24 VDC, <100 mA current
  • Durable PBT enclosure, IP67 rated
  • Precise 0.1 mm x 0.1 mm beam diameter
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Displacement Sensor
Brand
Panasonic
Series
HL - G

Electrical

Sensing Type
Diffuse reflection
Electrical Connection
Cable
Light Source
Red semiconductor laser, Class 2
Rated Voltage (Ur)
24V DC ±10 % including ripple 0.5V (P-P)

Mechanical

Material
Enclosure: PBT, Front cover: Acrylic, Cable: PVC

Dimensions & Physical Data

Depth
20.4mm
Height
60mm
Width
57mm
Cable Length
5m

Environmental

IP Rating
IP67 (IEC)
Ambient Temperature
-10°C to 45°C
