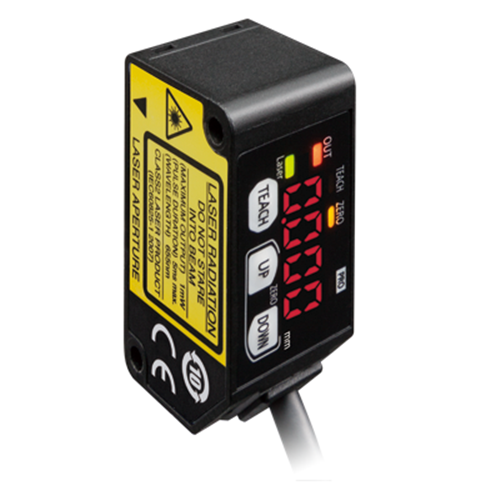

Panasonic HG-C1400-P Self Monitoring Distance Sensor +/-200mm Sensing 12-24VDC PNP Analog Output 2m L Cable

Product Code: HG-C1400-P

  • Optical sensor with 4-20 mA & 0-5 V output
  • Sensing range of +/-200 mm
  • Durable die-cast aluminium housing
  • IP67 rated for water and dust protection
  • PNP analog output for reliable performance
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Distance Sensor
Brand
Panasonic
Series
HG - C

Electrical

Measurement Center Distance
400 mm
Measurement Range
±200 mm
Type of Switching Output
PNP
Light Source
Red semiconductor laser Class 8
Supply Voltage
12 to 24V DCplus or minus 10% Ripple P-P 10%

Mechanical

Material
Enclosure: Aluminum die-cast, Front cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
44mm
Width
25mm
Cable Length
10m

Environmental

IP Rating
IP67 (IEC)
Ambient Temperature
-10°C to 45°C

Documents

IPD Product Catalogue V17
