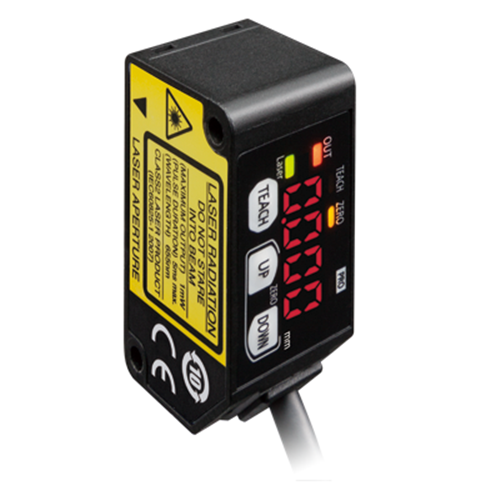

Panasonic HG-C1100-P Self Monitoring Distance Sensor +/-35mm Sensing 12-24VDC PNP Analog Output 2m L Cable

Product Code: HG-C1100-P

  • Sensing range of +/-35 mm
  • 4-20 mA and 0-5 V analog outputs
  • Rated voltage: 12-24 VDC
  • Robust die-cast aluminium housing
  • IP67 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Distance Sensor
Brand
Panasonic
Series
HG - C

Electrical

Measurement Center Distance
100 mm
Measurement Range
±35 mm
Type of Switching Output
PNP
Light Source
Red semiconductor laser Class 7
Supply Voltage
12 to 24V DCplus or minus 10% Ripple P-P 10%

Mechanical

Material
Enclosure: Aluminum die-cast, Front cover: Acrylic

Dimensions & Physical Data

Depth
20mm
Height
44mm
Width
25mm
Cable Length
10m

Environmental

IP Rating
IP67 (IEC)
Ambient Temperature
-10°C to 45°C

Documents

IPD Product Catalogue V17
