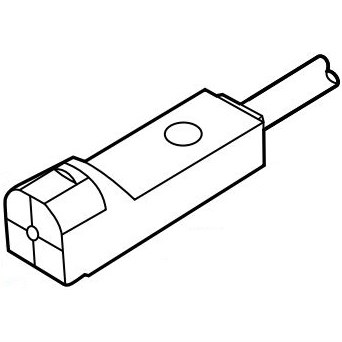

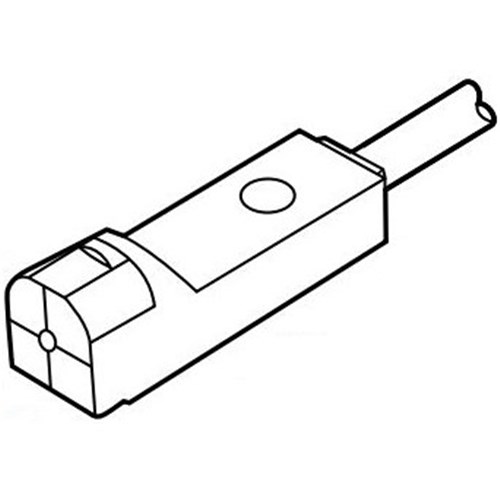

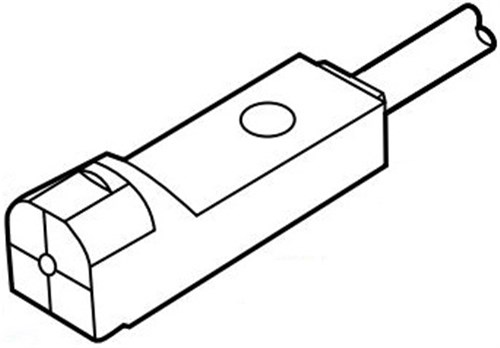

Panasonic GX-H8A-C5 Rectangular Inductive Proximity Sensor NO NPN-Output 5m L Cable

Product Code: GX-H8A-C5

  • Sensing range of 0-2.1 mm
  • Operates on 12-24 VDC, <15 mA
  • Durable PBT housing material
  • IP68 protection for harsh environments
  • Operates in -40 to 85°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - H

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
2.5mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
25mm
Height
8.2mm
Width
8mm
Cable Length
5m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68

Documents

IPD Product Catalogue V17
