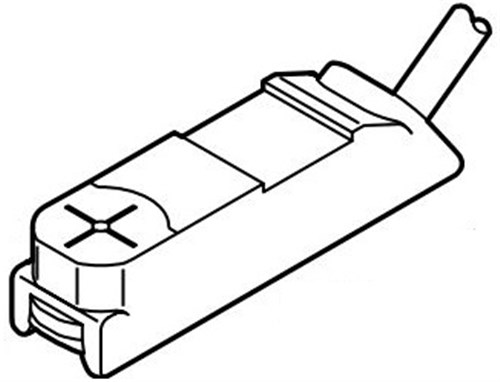

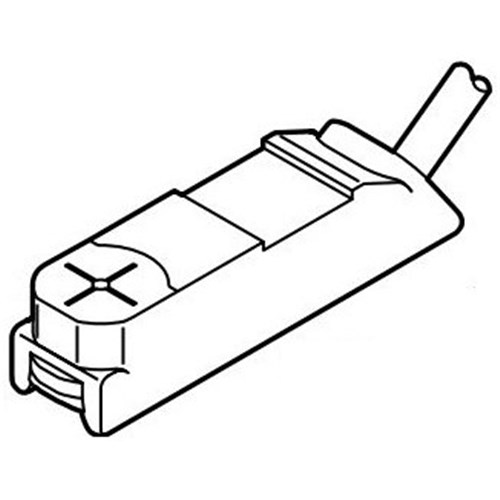

Panasonic GX-F6A-P Rectangular Inductive Proximity Sensor NO PNP-Output 1m L Cable

Product Code: GX-F6A-P

  • Compact design with 0-1.3 mm sensing range
  • Operates on 12-24 VDC, under 15 mA
  • Durable PBT housing, IP68 protection
  • Wide temp range: -40 to 85°C
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
1.6mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
24.5mm
Height
6mm
Width
6mm
Cable Length
1m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68

Documents

IPD Product Catalogue V17
