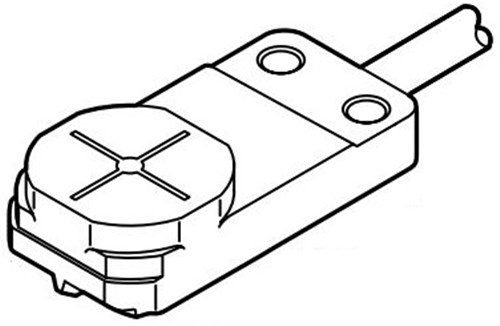

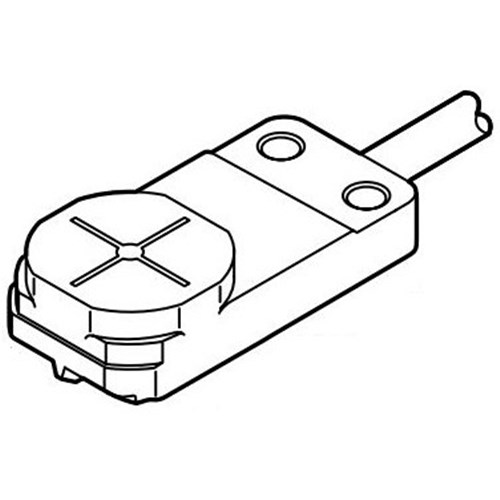

Panasonic GX-F15B Rectangular Inductive Proximity Sensor NC NPN-Output 1m L Cable

Product Code: GX-F15B

  • Sensing range up to 4.2 mm
  • Rated voltage: 12-24 VDC
  • Durable PBT housing
  • IP68 protection rating
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
5mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
31.5mm
Height
8mm
Width
15mm
Cable Length
1m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68
