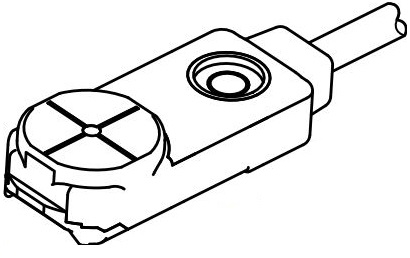

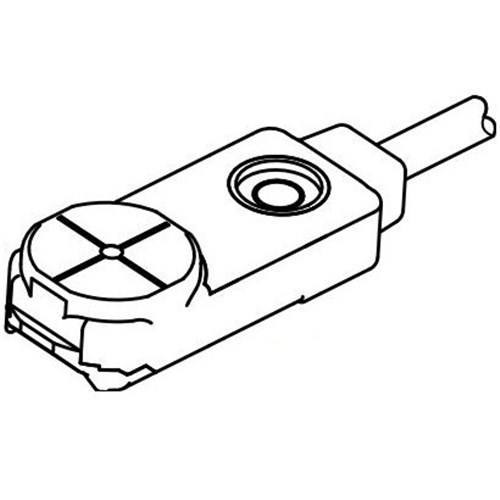

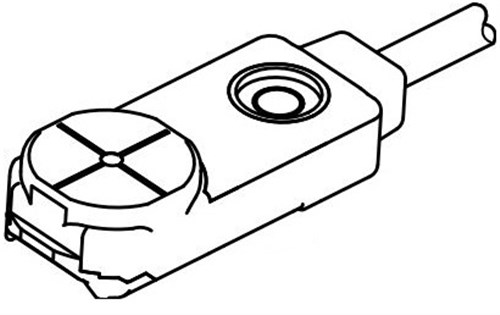

Panasonic GX-F15A Rectangular Inductive Proximity Sensor NO NPN-Output 1m L Cable

Product Code: GX-F15A

  • Sensing range: 0-4.2 mm
  • Voltage: 12-24 VDC
  • IP68 protection rating
  • Operates in -40 to 85°C
  • Orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
5mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
31.5mm
Height
8mm
Width
15mm
Cable Length
1m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68
