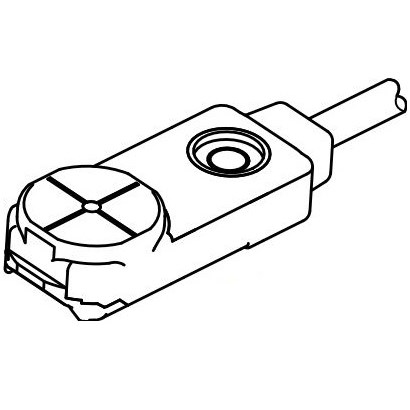

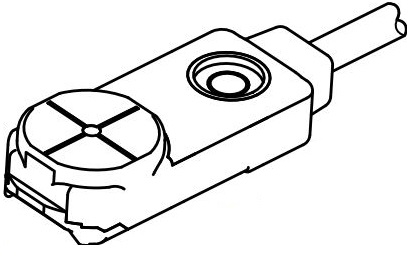

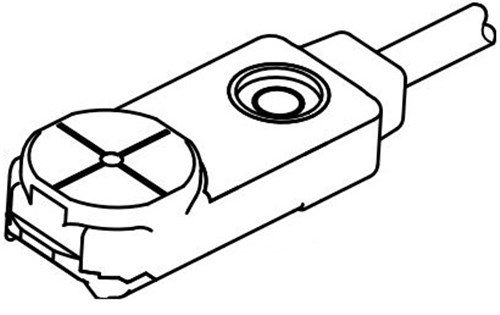

Panasonic GX-F12B-P Rectangular Inductive Proximity Sensor NC PNP-Output 1m L Cable

Product Code: GX-F12B-P

  • Sensing range of 0-3.3 mm
  • Operates on 12-24 VDC with <15 mA current
  • Durable PBT housing, IP68 protection
  • Functions in -40 to 85°C environments
  • Features an orange LED operation indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
4mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
27.8mm
Height
7.1mm
Width
12mm
Cable Length
1m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68

Documents

IPD Product Catalogue V17
