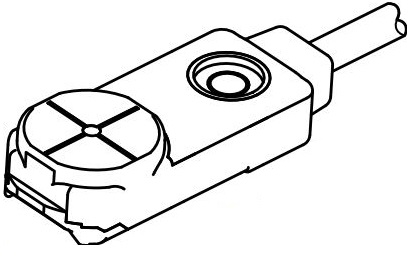

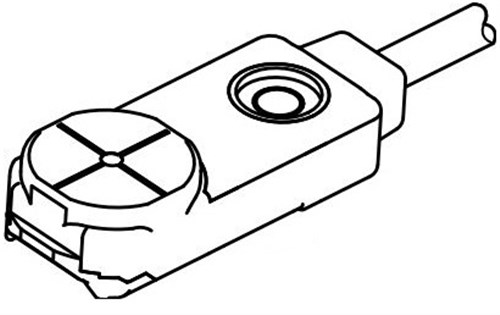

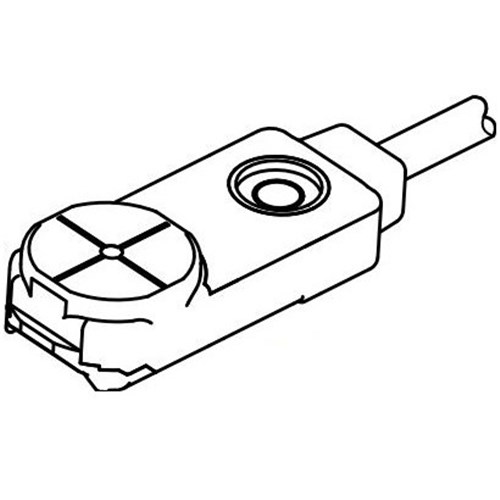

Panasonic GX-F12B-P-C5 Rectangular Inductive Proximity Sensor NC PNP-Output 5m L Cable

Product Code: GX-F12B-P-C5

  • Compact sensor with 0-3.3 mm range
  • Operates on 12-24 VDC, <15 mA
  • Durable PBT housing, IP68/IP68G rated
  • Wide temp range: -40 to 85°C
  • 5m cable with orange LED indicator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
4mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
27.8mm
Height
7.1mm
Width
12mm
Cable Length
5m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68

Documents

IPD Product Catalogue V17
