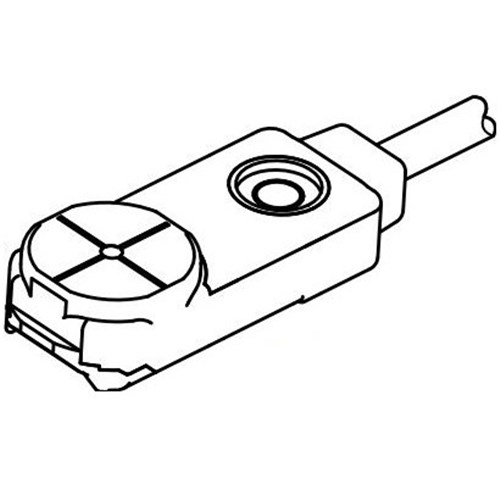

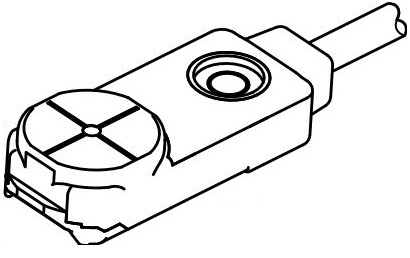

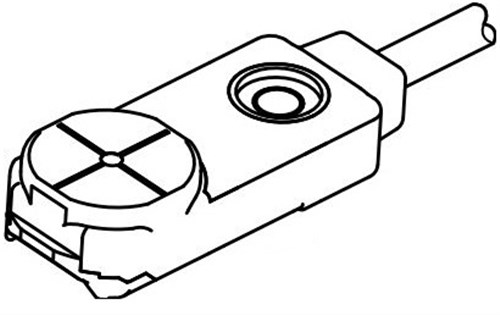

Panasonic GX-F12A-C5 Rectangular Inductive Proximity Sensor NO NPN-Output 5m L Cable

Product Code: GX-F12A-C5

  • Sensing range of 0-3.3 mm
  • Operates on 12-24 VDC, <15 mA current
  • Durable PBT housing with IP68 protection
  • Functions in -40 to 85°C environments
  • Includes a 5 m cable for flexible use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX - F

Electrical

Switching Current
0.1A
Switching Voltage
12V to 24V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
4mm

Mechanical

Material
PBT

Dimensions & Physical Data

Depth
27.8mm
Height
7.1mm
Width
12mm
Cable Length
5m

Environmental

Operating Temperature without Derating
-25°C to 70°C
Operating Temperature
-25°C to 70°C
IP Rating
IP68

Documents

IPD Product Catalogue V17
