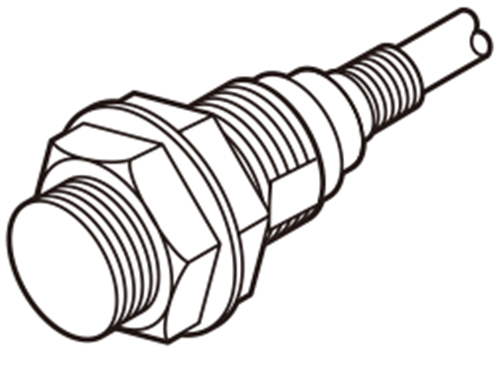

Panasonic GX-330M-A-N Cylindrical Inductive Proximity Sensor NO NPN-Output 2m L Cable

Product Code: GX-330M-A-N

  • Sensing range: 0-8 mm
  • Voltage: 10-30 VDC, Current: <16 mA
  • Nickel plated brass housing
  • Protection: IP67, IP69K, IP67G
  • Operates in -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX

Electrical

No. of N/O Contacts
1
Switching Current
0.1A
Switching Voltage
10V to 30V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
10mm

Mechanical

Material
Nickel plated brass

Dimensions & Physical Data

Height
60.3mm
Width
60.3mm
Cable Length
2m

Environmental

Operating Temperature without Derating
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP67 (IEC), IP69K, IP67G

Documents

IPD Product Catalogue V17
