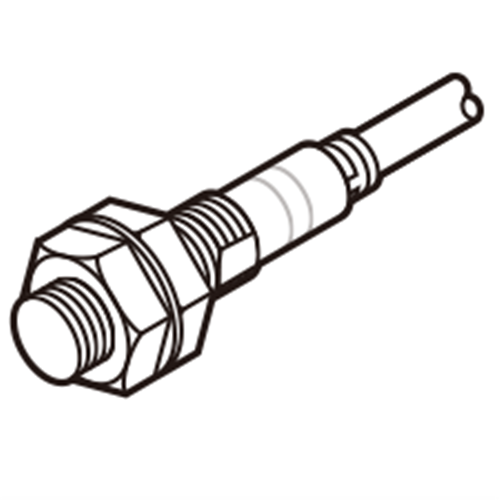

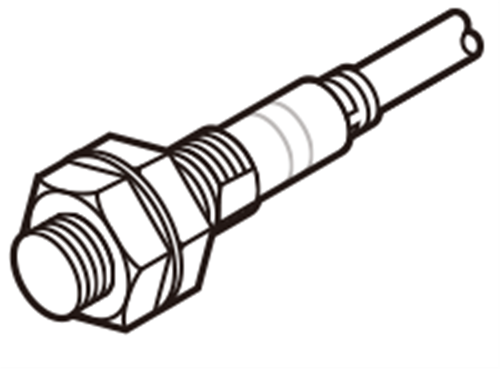

Panasonic GX-312M-A-N Cylindrical Inductive Proximity Sensor NO NPN-Output 2m L Cable

Product Code: GX-312M-A-N

  • Compact sensing range of 0-1.6 mm
  • Operates on 10-30 VDC with <16 mA current
  • Durable nickel-plated brass housing
  • High protection: IP67, IP69K, IP67G
  • Wide temp range: -40 to 85°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Inductive Proximity Sensor
Brand
Panasonic
Series
GX

Electrical

No. of N/O Contacts
1
Switching Current
0.1A
Switching Voltage
10V to 30V
Type of Actuation
Inductive
Electrical Connection
3 wire
Switching Distance
2mm

Mechanical

Material
Nickel plated brass

Dimensions & Physical Data

Height
47.1mm
Width
47.1mm
Cable Length
2m

Environmental

Operating Temperature without Derating
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP67 (IEC), IP69K, IP67G
