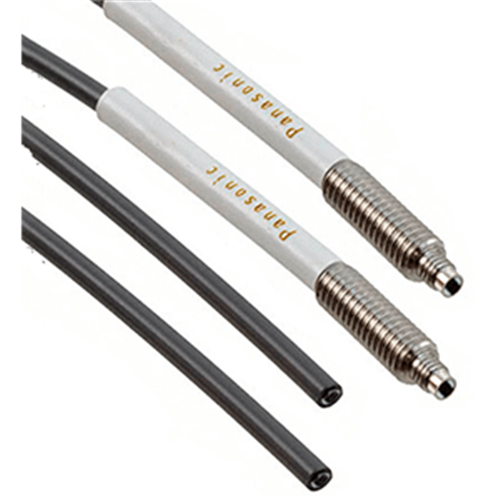

Panasonic FT-43 Fiber Optic Thru-Beam Sensor

Product Code: FT-43

  • Optical sensor with 1400 mm range
  • High accuracy of +/-2 degrees
  • IP67 protection for durability
  • Top view beam direction
  • 2 m cable length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thru - Beam Sensor
Brand
Panasonic
Series
FT

Electrical

Max. Switching Distance
Red (U-LG): 2200mm Red (STD): 450mm Red (FAST): 310mm Blue (U-LG): 460mm Blue (STD): 120mm Blue (FAST): 75mm Green (U-LG): 250mm Green (STD): 62mm Green (FAST): 44mm
Sensing Type
Thru-beam type
Electrical Connection
Cable
Light Source
Infrared LED (non-modulated)

Dimensions & Physical Data

Width
15mm
Diameter
8.5mm
Cable Length
2m

Environmental

Operating Temperature
-55°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
