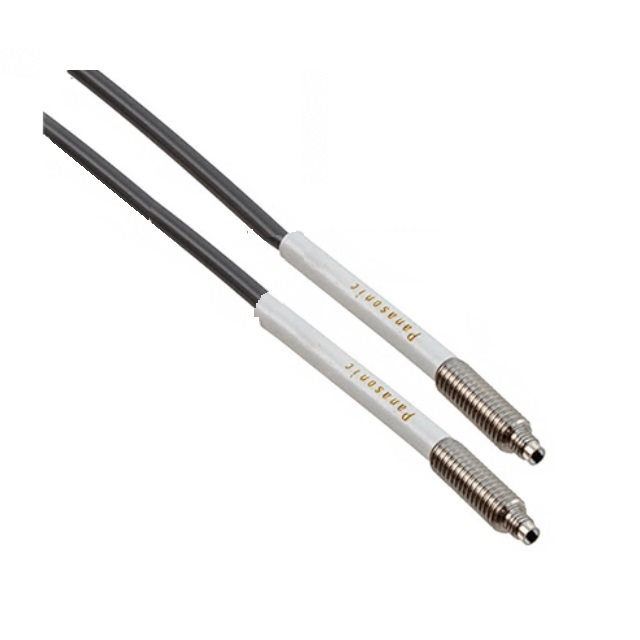

Panasonic FT-42 Fiber Optic Thru-Beam Sensor

Product Code: FT-42

  • Sensing range up to 1130 mm
  • High protection rating of IP67
  • Top view beam direction
  • Threaded fibre type design
  • Compact M4 x 15 mm head size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thru - Beam Sensor
Brand
Panasonic
Series
FT

Electrical

Max. Switching Distance
Red (U-LG): 1550mm Red (STD): 340mm Red (FAST): 240mm Blue (U-LG): 230mm Blue (STD): 60mm Blue (FAST): 40mm Green (U-LG): 125mm Green (STD): 33mm Green (FAST): 22mm
Sensing Type
Thru-beam type
Electrical Connection
Cable
Light Source
Infrared LED (non-modulated)

Dimensions & Physical Data

Width
15mm
Diameter
8.5mm
Cable Length
2m

Environmental

Operating Temperature
-55°C to 80°C
IP Rating
IP67
