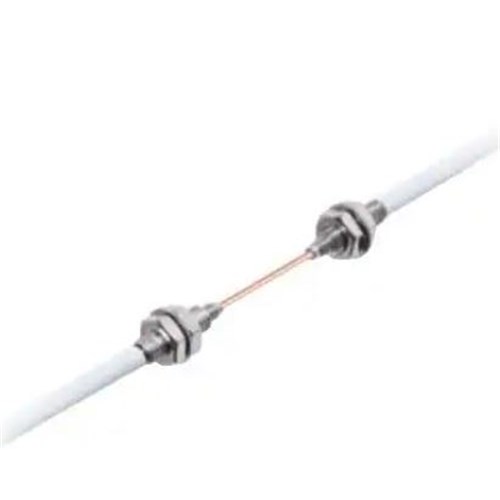

Panasonic FT-32 Fiber Optic Thru-Beam Sensor

Product Code: FT-32

  • Sensing range up to 3000 mm
  • IP40 protection rating
  • Top view beam direction
  • Threaded fibre type
  • Compact M3 x 12 mm head size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thru - Beam Sensor
Brand
Panasonic
Series
FT

Electrical

Max. Switching Distance
Red (U-LG): 3600mm Red (STD): 1190mm Red (FAST): 870mm Blue (U-LG): 860mm Blue (STD): 220mm Blue (FAST): 145mm Green (U-LG): 450mm Green (STD): 120mm Green (FAST): 80mm
Sensing Type
Thru-beam type
Electrical Connection
Cable
Light Source
Infrared LED (non-modulated)

Dimensions & Physical Data

Width
12mm
Diameter
1.6mm
Cable Length
2m

Environmental

Operating Temperature
-40°C to 70°C
IP Rating
IP40
