Panasonic FD-61 Fiber Optic Reflective Sensor

Product Code: FD-61

  • Safety sensor with 450 mm sensing range
  • IP67 rated for robust protection
  • Top view beam direction
  • Threaded fibre type for secure installation

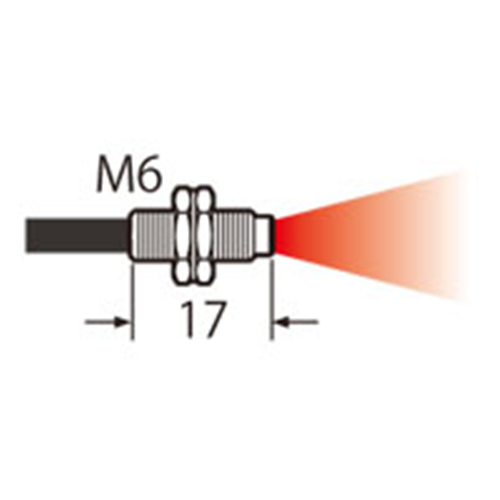

  • Compact head size: M6 x 17 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Refelective Sensor
Brand
Panasonic
Series
FD

Electrical

Max. Switching Distance
Red (U-LG): 510mm Red (STD): 140mm Red (FAST): 95mm Blue (U-LG): 105mm Blue (STD): 27mm Blue (FAST): 18mm Green (U-LG): 65mm Green (STD): 16mm Green (FAST): 11mm
Sensing Type
Reflective type
Electrical Connection
Cable
Light Source
Infrared LED (non-modulated)

Dimensions & Physical Data

Width
17mm
Diameter
11mm
Cable Length
2m

Environmental

Operating Temperature
-55°C to 80°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
