Panasonic FD-30 Fiber Optic Reflective Sensor

Product Code: FD-30

  • Safety sensor with 160 mm sensing range
  • IP67 protection for harsh environments
  • Top view beam direction
  • Threaded fibre type for secure installation

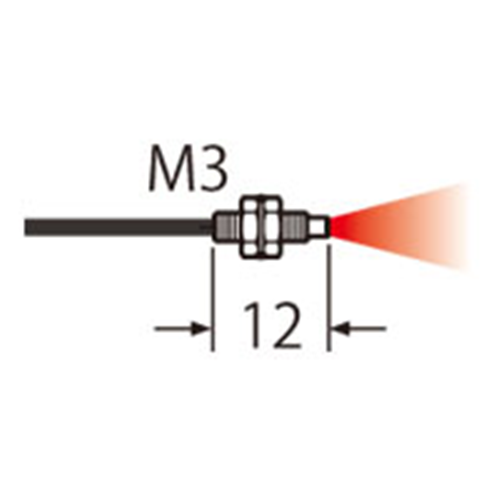

  • Compact head size: M3 x 12 m
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Refelective Sensor
Brand
Panasonic
Series
FD

Electrical

Max. Switching Distance
Red (U-LG): 200mm Red (STD): 48mm Red (FAST): 35mm Blue (U-LG): 40mm Blue (STD): 9mm Blue (FAST): 6mm Green (U-LG): 18mm Green (STD): 5mm Green (FAST): 3mm
Sensing Type
Reflective type
Electrical Connection
Cable
Light Source
Infrared LED (non-modulated)

Dimensions & Physical Data

Width
12mm
Diameter
6.5mm
Cable Length
2m

Environmental

Operating Temperature
-55°C to 80°C
IP Rating
IP67
