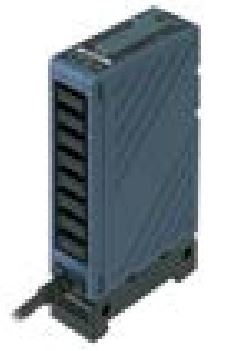

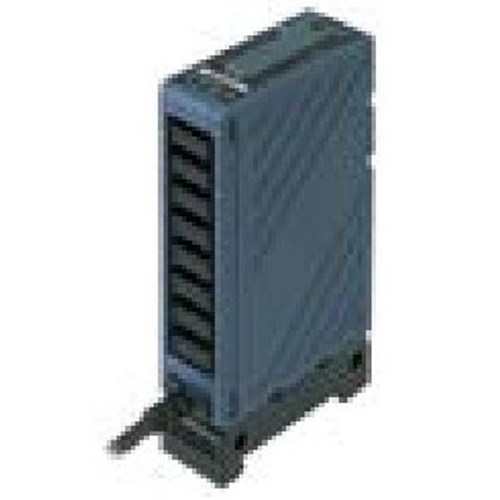

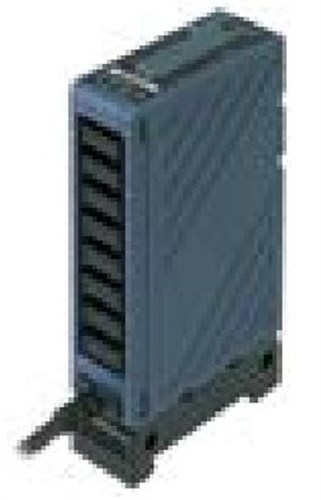

Panasonic EX-FC1 Leak Detection Sensor 12-24VDC 2m L Cable SL-CP1 1 A Relay-Output

Product Code: EX-FC1

  • Suitable for 12-24 VDC systems
  • Compact ABS housing, weighs 85g
  • Quick response time under 5 ms
  • Orange LED indicates operation status
  • Easy SL-CP1 connection with 2m cable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Leak Detection Sensor
Brand
Panasonic
Series
EX - 60

Electrical

Sensing Type
Leak detection
Type of Switching Output
Relay-Output
Electrical Connection
Cable
Rated Voltage (Ur)
12V to 24V DC

Mechanical

Material
Enclosure: ABS, Unit mounting base: POM, Terminal part: PBT

Dimensions & Physical Data

Depth
20mm
Height
93mm
Width
52mm
Cable Length
2m

Environmental

Operating Temperature
-10°C to 60°C
