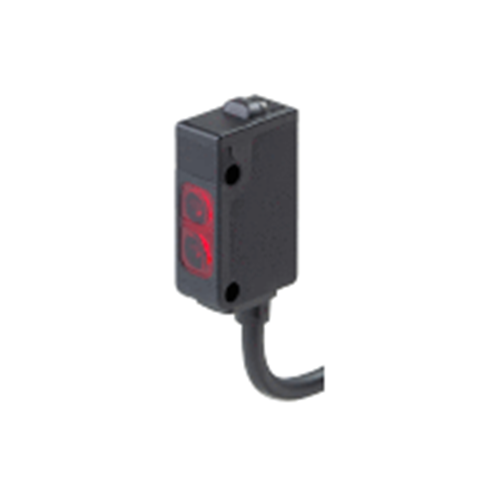

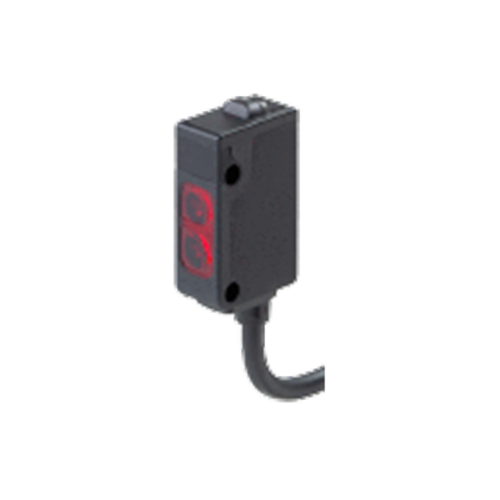

Panasonic EX-43 Convergent Reflective Photoelectric Sensor 12-24VDC 10-70mm Sensing 2m L Cable NPN-Output

Product Code: EX-43

  • Sensing range: 10-70 mm
  • Voltage range: 12-24 VDC
  • Durable PBT housing, IP67 rated
  • Fast response time: <0.5 ms
  • Operational temp.: -30 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 40

Electrical

Max. Switching Distance
500mm
Sensing Type
Spot-beam
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT (Polybutylene terephthalate), Lens: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
10mm
Height
35mm
Width
18mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
