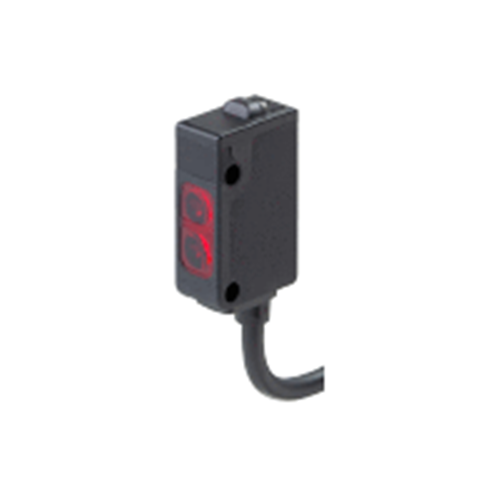

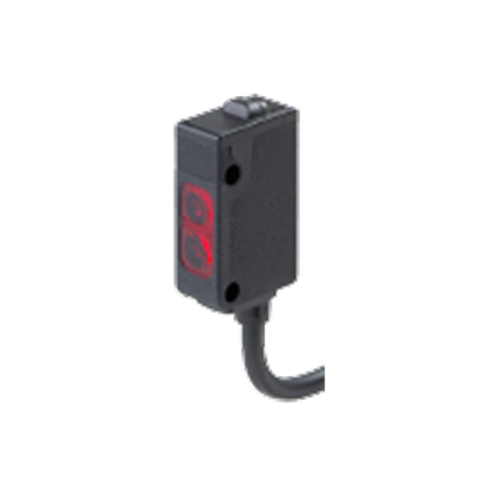

Panasonic EX-42 Convergent Reflective Photoelectric Sensor 12-24VDC 5-38mm Sensing 2m L Cable NPN-Output

Product Code: EX-42

  • Detects objects within 5-38 mm range
  • Operates on 12-24 VDC, <35 mA current
  • NPN output with IP67 protection
  • Durable PBT housing; -30 to 70°C temp range
  • Fast response time of <0.5 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 40

Electrical

Max. Switching Distance
500mm
Sensing Type
Diffused beam type
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: PBT (Polybutylene terephthalate), Lens: Polycarbonate, Display cover: Polycarbonate

Dimensions & Physical Data

Depth
10mm
Height
35mm
Width
18mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
