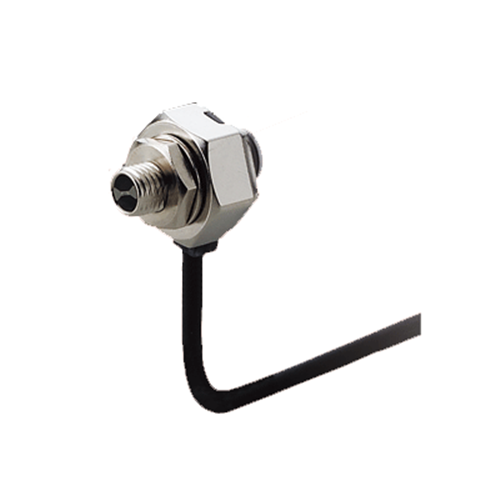

Panasonic EX-32A Threaded Miniature Photoelectric Sensor 12-24VDC 50mm Sensing NPN-Output

Product Code: EX-32A

  • Compact safety sensor with 50 mm range
  • Operates on 12-24 VDC, 13 mA current
  • Durable die-cast zinc body, polycarbonate lens
  • IP67 protection for harsh environments
  • CE, RoHS, UL recognized standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 30

Electrical

Max. Switching Distance
50mm
Sensing Type
Diffuse reflective
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Die-cast zinc (Nickel plated), Lens: Polycarbonate, Enclosure cover: Polycarbonate

Dimensions & Physical Data

Depth
18mm
Height
15.6mm
Width
15.6mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
