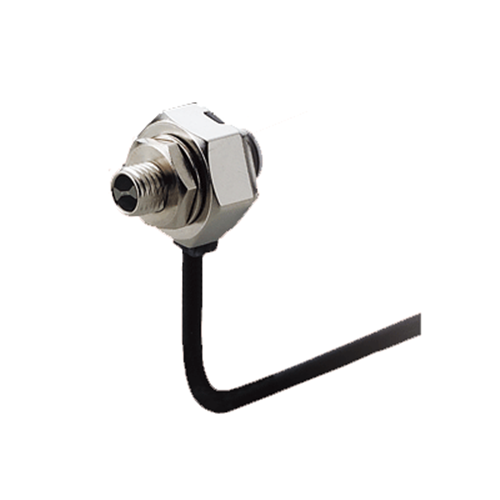

Panasonic EX-32A-PN Threaded Miniature Photoelectric Sensor 12-24VDC 50mm Sensing 2m L Cable PNP-Output

Product Code: EX-32A-PN

  • Compact safety sensor with 50 mm range
  • Operates on 12-24 VDC, PNP output type
  • Durable die cast zinc body with acrylic lens
  • IP67 protection for harsh environments
  • Light-ON operation indicator with red LED
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 30

Electrical

Max. Switching Distance
50mm
Sensing Type
Diffuse reflective
Type of Switching Output
PNP
Electrical Connection
Cable
Light Source
Red LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Die-cast zinc (Nickel plated), Lens: Acrylic, Enclosure cover: Polycarbonate

Dimensions & Physical Data

Depth
18mm
Height
15.6mm
Width
15.6mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
