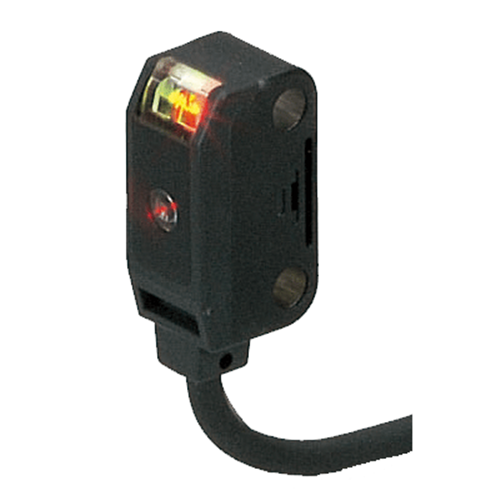

Panasonic EX-23 Ultra-compact Photoelectric Sensor 12-24VDC 2m Sensing NPN-Output

Product Code: EX-23

  • Sensing range up to 2 m
  • Operates on 12-24 VDC
  • NPN output type
  • Durable IP67 protection
  • Quick response time <0.5 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 20

Electrical

Max. Switching Distance
2000mm
Sensing Type
Thru-beam
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED (modulated)
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polyarylate, Lens: Polyarylate

Dimensions & Physical Data

Depth
8.2mm
Height
19mm
Width
10.5mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)

Documents

IPD Product Catalogue V17
