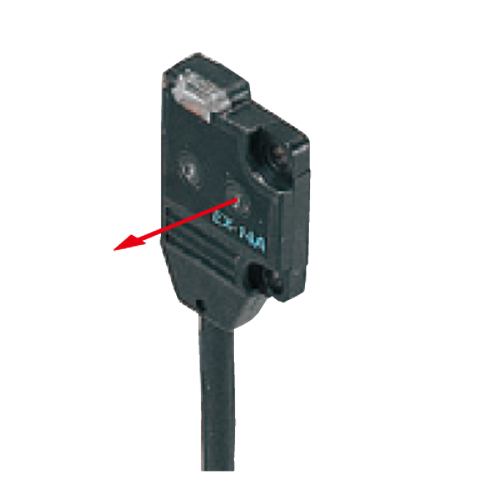

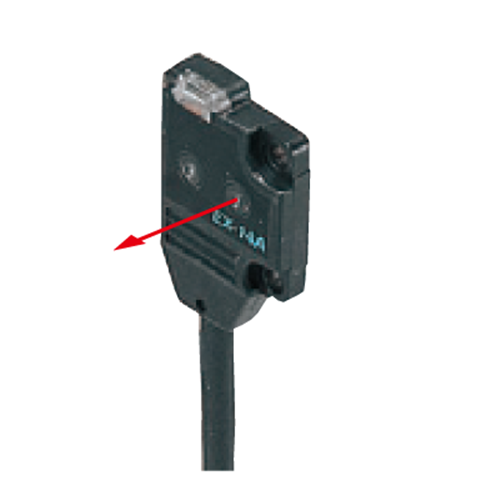

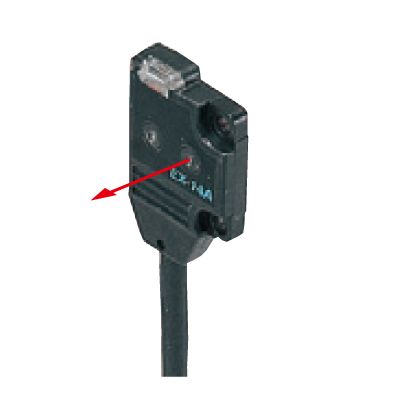

Panasonic EX-14A-PN Ultra-Slim Photoelectric Sensor 12-24VDC 2-25mm Sensing 2m L Cable PNP-Output

Product Code: EX-14A-PN

  • Sensing range: 2-25 mm
  • Voltage: 12-24 VDC, Current: <13 mA
  • PNP output with orange LED indicator
  • Durable polyarylate housing, IP67 rated
  • Fast response time: <0.5 ms
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 10

Electrical

Max. Switching Distance
2mm to 25mm
Sensing Type
Convergent reflective
Type of Switching Output
PNP
Electrical Connection
Cable
Light Source
Red LED
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polyarylate, Lens: Polyarylate

Dimensions & Physical Data

Depth
3.5mm
Height
19mm
Width
10mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
