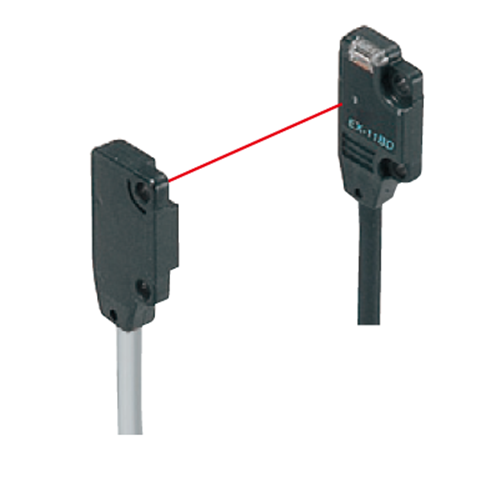

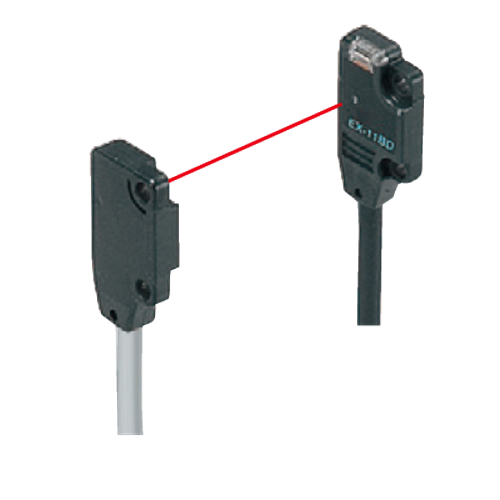

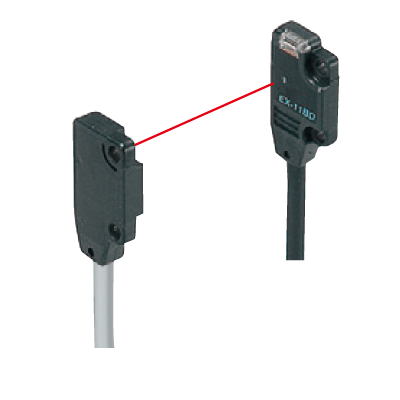

Panasonic EX-13EA-PN Ultra-slim Photoelectric Sensor 12-24VDC 500mm Sensing 2m L Cable PNP-Output

Product Code: EX-13EA-PN

  • Detects objects up to 500 mm away
  • Operates on 12-24 VDC with PNP output
  • Durable polyarylate housing, IP67 rated
  • Fast response time of <0.5 ms
  • Orange LED indicates operation status
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 10

Electrical

Max. Switching Distance
500mm
Sensing Type
Thru-beam
Type of Switching Output
PNP
Electrical Connection
Cable
Light Source
Red LED
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polyarylate, Lens: Polyarylate

Dimensions & Physical Data

Depth
4.5mm
Height
19mm
Width
10mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
