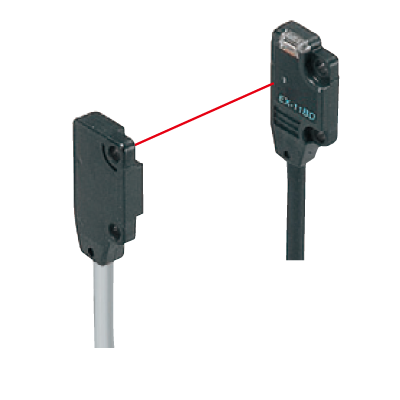

Panasonic EX-11B Ultra-slim Photoelectric Sensor 12-24VDC 150mm Sensing NPN-Output

Product Code: EX-11B

  • Compact safety sensor with 150 mm range
  • Operates on 12-24 VDC, NPN output
  • Durable IP67 housing for harsh environments
  • Quick response time of <0.5 ms
  • Lightweight at just 0.02 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Photoelectric Sensor
Brand
Panasonic
Series
EX - 10

Electrical

Max. Switching Distance
150mm
Sensing Type
Thru-beam
Type of Switching Output
NPN
Electrical Connection
Cable
Light Source
Red LED
Rated Voltage (Ur)
12 to 24 V DC ±10 % Ripple P-P 10 % or less

Mechanical

Material
Enclosure: Polyarylate, Lens: Polyarylate

Dimensions & Physical Data

Depth
3.5mm
Height
19mm
Width
10mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67 (IEC)
